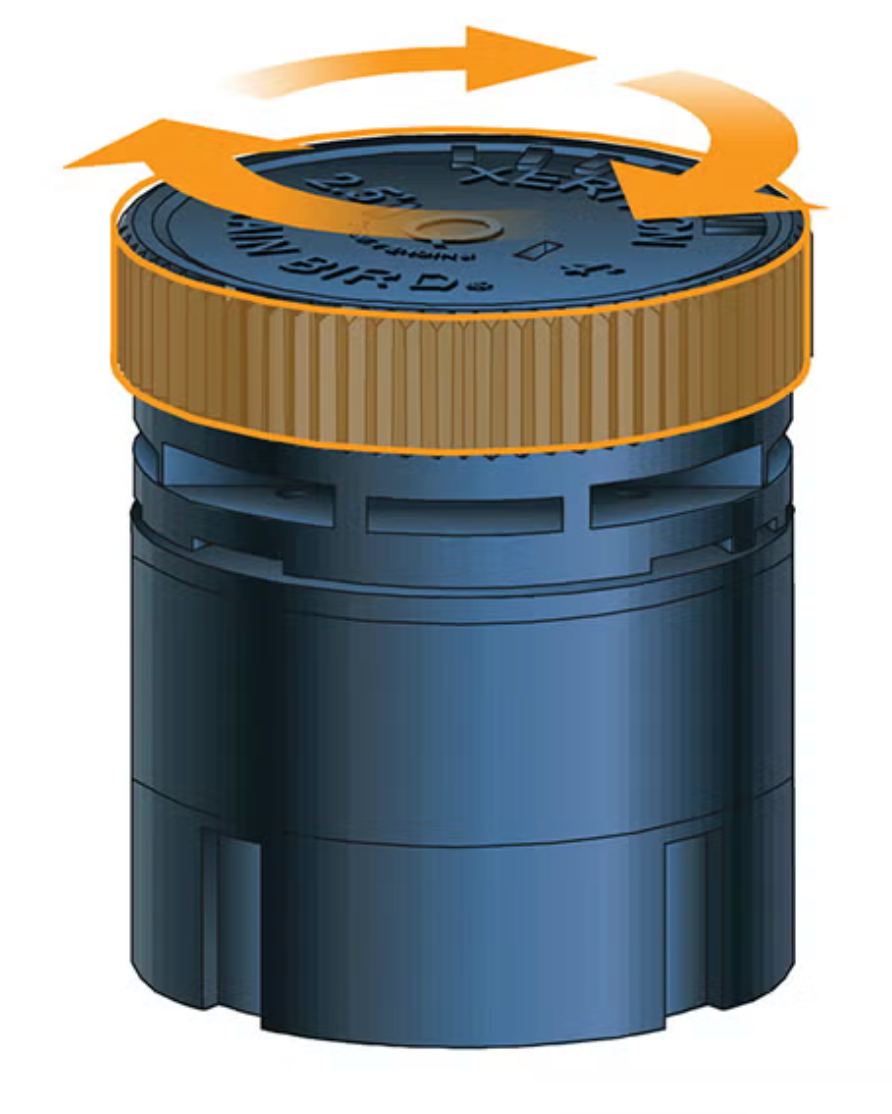

The Rain Bird SQ Series Square Pattern Nozzles deliver precise, uniform water distribution in a square coverage pattern — ideal for rectangular and square-shaped garden beds, lawns, and landscaped areas where traditional circular nozzles leave dry corners.
Pressure-compensating (PC) technology ensures consistent flow and coverage even when water pressure varies across your irrigation system.
Key Features
Square distribution pattern for efficient coverage of rectangular areas
Pressure-compensating (PC) for consistent output across varying pressures
Available in four arc options to suit any layout

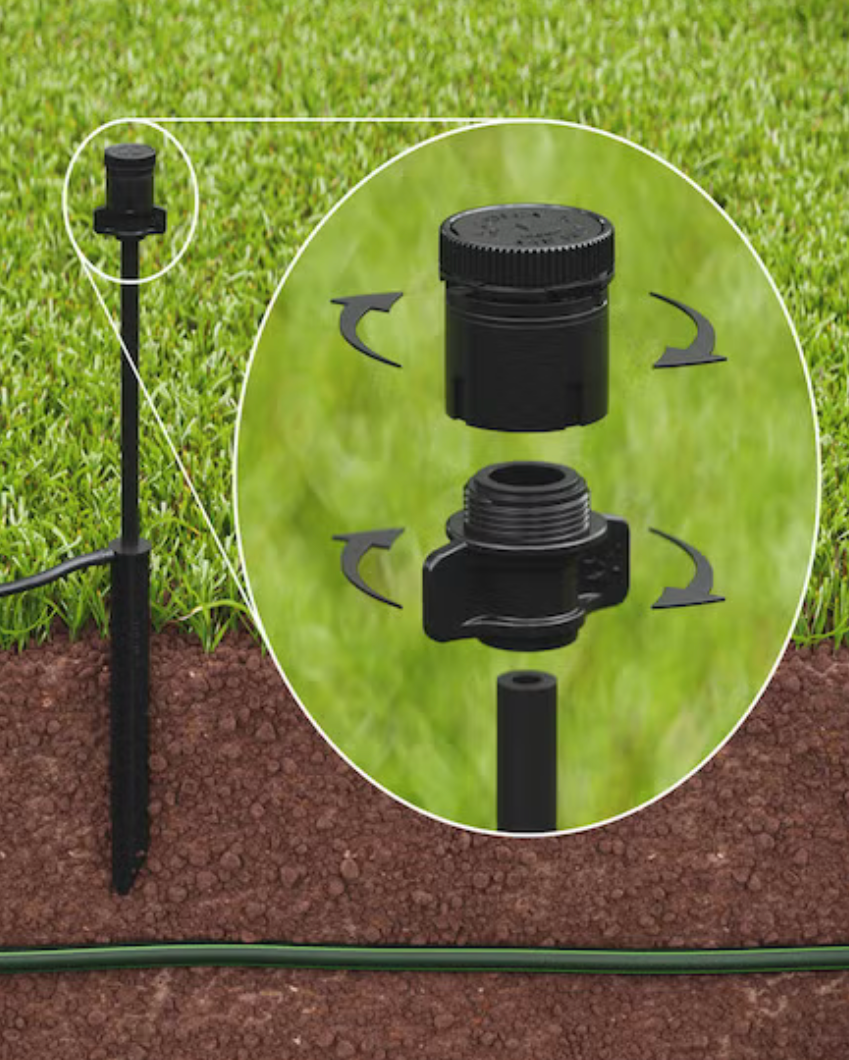

Compatible with Rain Bird SQ micro-irrigation risers and assemblies
Reduces water waste by eliminating over-spray into non-planted areas

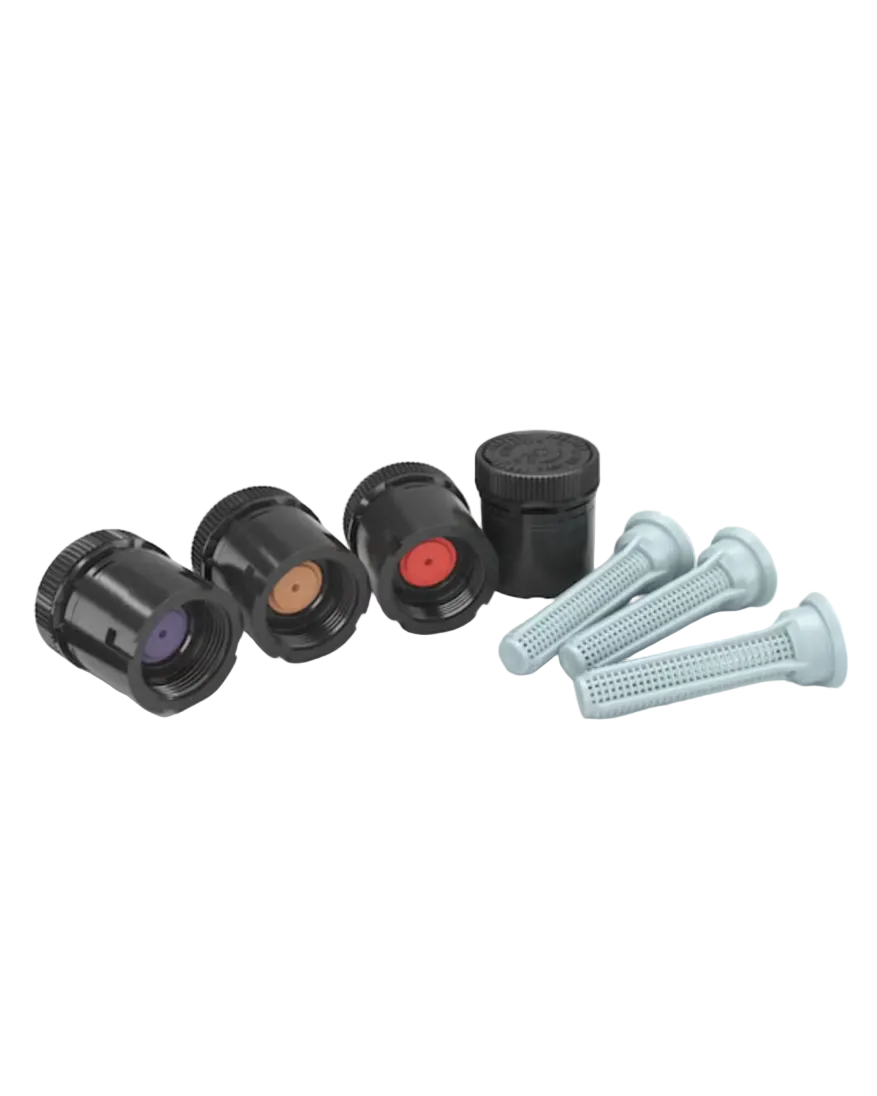

Available Variants
Full Circle — 360° coverage for central bed positions
Three Quarter Circle — 270° for corner-adjacent placements
Half Circle — 180° for edge positions
Quarter Circle — 90° for tight corners
Ideal For
Vegetable gardens, raised beds, formal garden layouts, and any irrigation zone where square or rectangular coverage is needed.
