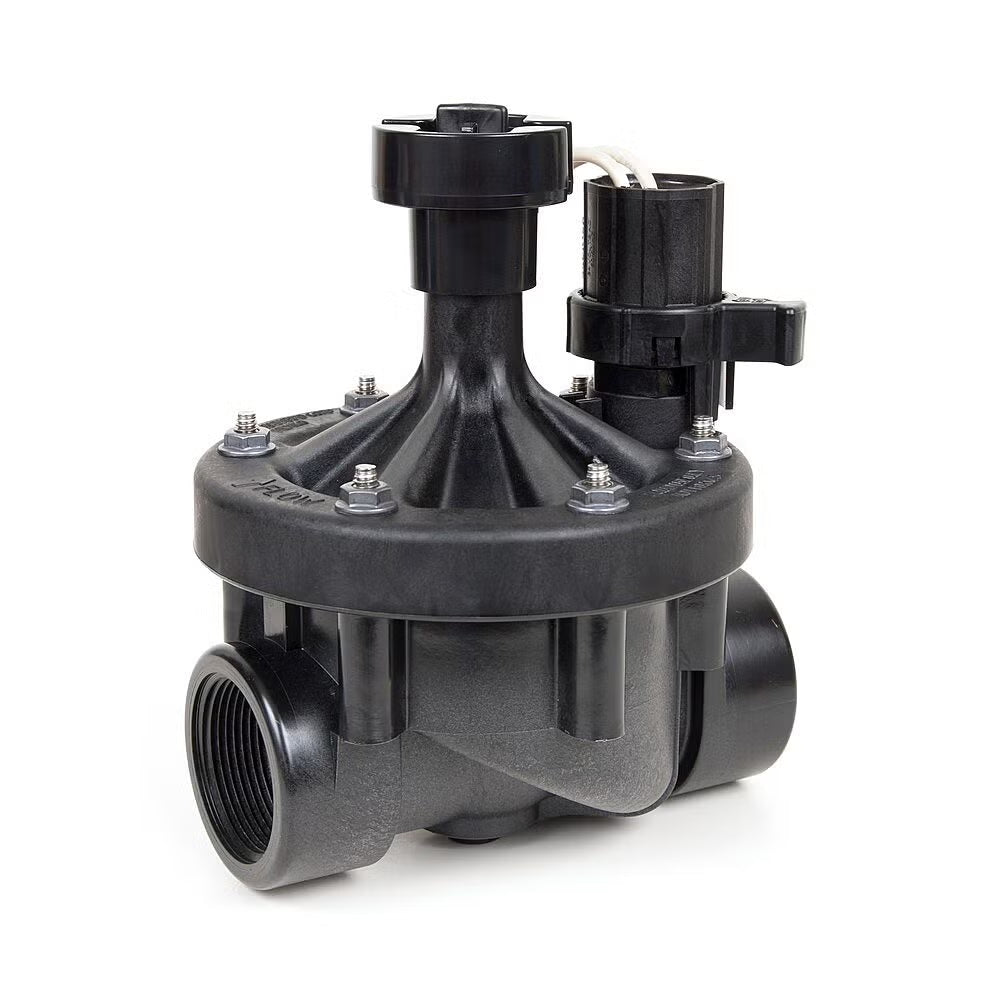

The Rain Bird PEB Series is Rain Bird's most durable plastic irrigation valve — a best-in-class professional series globe valve built for demanding commercial irrigation applications. Constructed from industrial-strength glass-filled nylon with a fabric-reinforced rubber diaphragm, the PEB delivers long-lasting, reliable performance across a wide range of flow conditions and system pressures.
Available in 25mm (1"), 40mm (1½"), and 50mm (2") BSP configurations, the PEB Series suits everything from medium residential systems through to large commercial and sports field installations. Compatible with Rain Bird's ESP-LXD decoder systems and optional PRS-D pressure regulating module for optimum sprinkler performance.
Key Features
Glass-Filled Nylon Construction — industrial-strength body with fabric-reinforced rubber diaphragm for long life and reliable performance in demanding conditions
Slow Closing Design — prevents water hammer and subsequent system damage on shut-down
Low Flow Capability — wide operating range suits a broad range of irrigation applications
One-Piece Solenoid with Captured Plunger & Spring — easy field servicing; prevents loss of parts during maintenance
Flow Control Handle — adjusts water flow as needed without additional tools
Manual Internal Bleed — operates the valve manually without allowing water into the valve box; allows pressure regulator adjustment without activating the controller
Manual External Bleed — permits flushing debris from the system; recommended for system start-up and after repairs
Stainless Steel Studs Moulded into Body — bonnet can be attached and removed more easily and more often without damaging threads
Optional PRS-D Pressure Regulating Module — field-installed; regulates up to 6.9 bar (100 psi) for optimum sprinkler performance
Latching Solenoid Compatible — accepts latching solenoid for use with Rain Bird battery-operated controllers up to 10.35 bar (150 psi)
ESP-LXD Decoder Compatible — integrates with Rain Bird's decoder-based control systems
Non-Potable Option — optional purple flow control handle available for non-potable water applications
5 Year Trade Warranty — backed by Rain Bird's industry-leading warranty

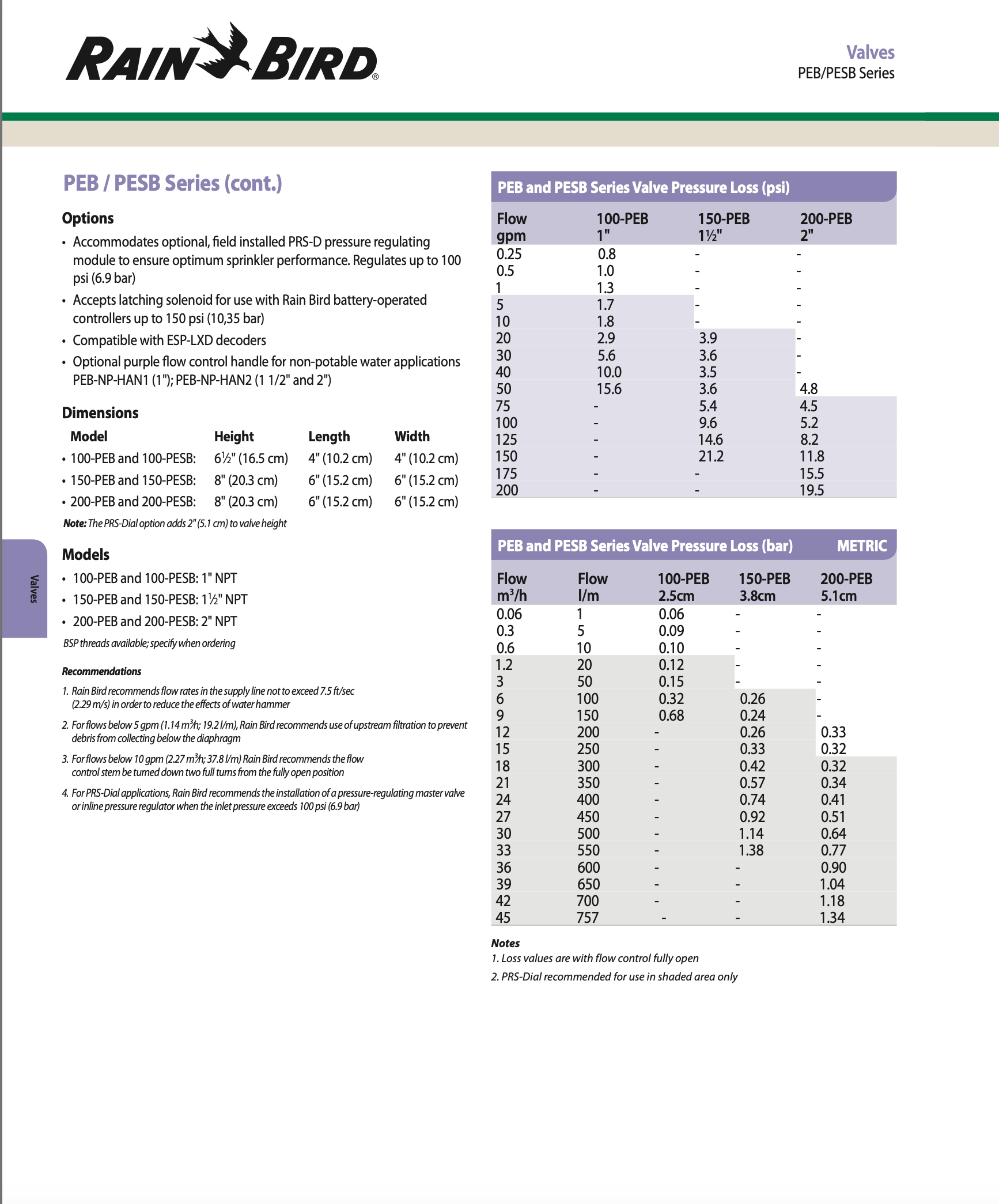

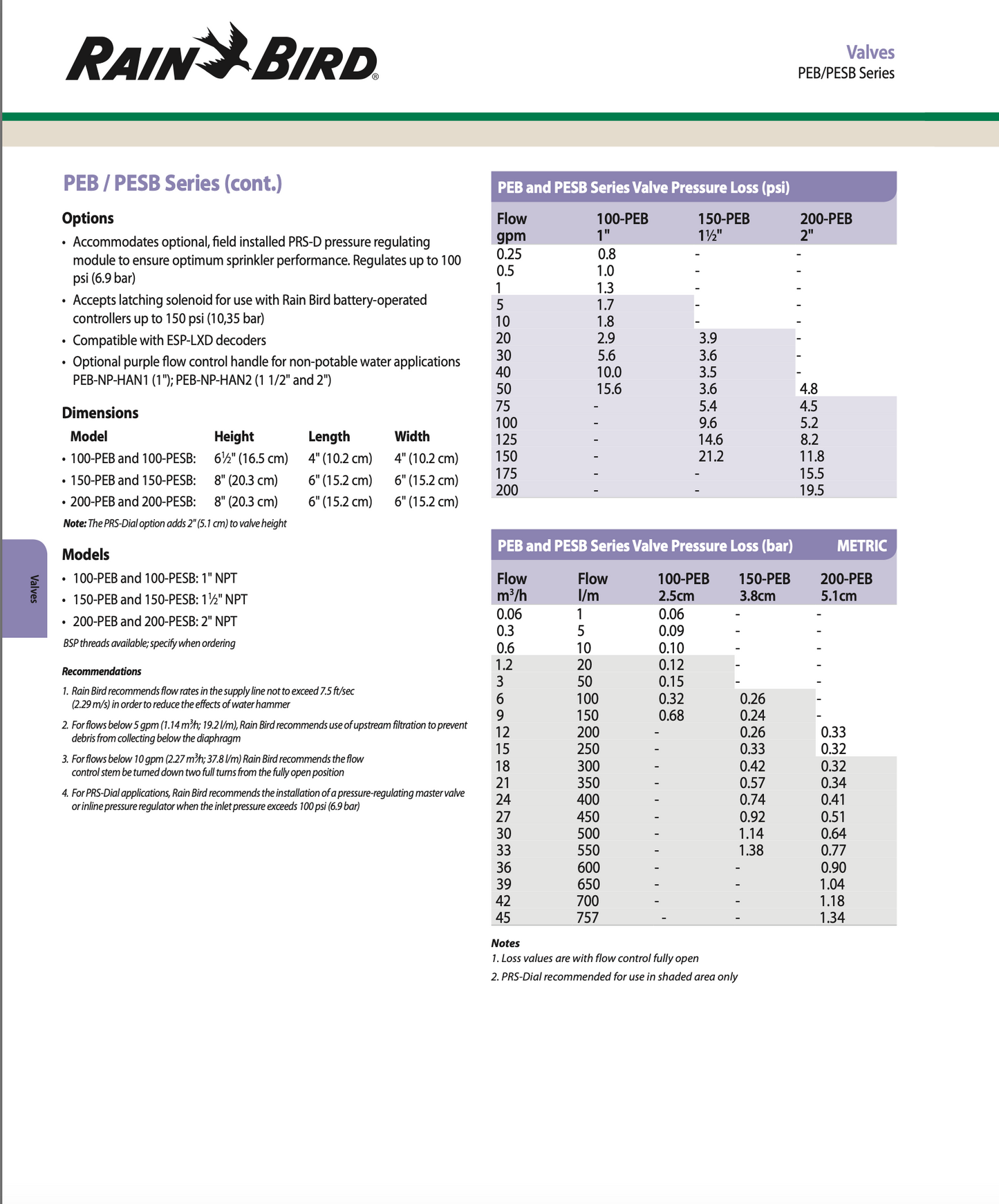

Technical Specifications
Pressure: 1.4 to 13.8 Bar (20 to 200 psi)
Flow (standard): 0.06 to 68.1 m³/h (0.25 to 300 GPM)
Flow (with PRS-D): 1.14 to 68.1 m³/h (5 to 300 GPM)
Temperature: up to 66°C (150°F)
Solenoid power: 24VAC 50/60Hz
Inrush current: 0.41A (9.9VA) at 50/60Hz
Holding current: 0.14A (3.43VA) at 50/60Hz
Inlet: BSP female threaded
Available Configurations & Dimensions
25mm (1") — 100-PEB — SKU: RB100PEB — 16.5cm H × 10.2cm L × 10.2cm W
40mm (1½") — 150-PEB — SKU: RB150PEB — 20.3cm H × 15.2cm L × 15.2cm W
50mm (2") — 200-PEB — SKU: RB200PEB — 20.3cm H × 15.2cm L × 15.2cm W
Ideal For
Commercial irrigation systems, sports fields, parks, golf courses, and large residential properties across New Zealand requiring a robust, serviceable, and decoder-compatible solenoid valve with wide pressure and flow range. The PEB is the professional's choice where long-term reliability and ease of field maintenance are non-negotiable.
