Rain Bird 6504 Falcon Rotor with SAM (Incl Nozzles)
The Rain Bird 6504 Falcon is a professional-grade gear-driven rotor built for large turf areas requiring long-range, uniform coverage. Featuring Rain Bird's signature Rain Curtain™ nozzle technology and a built-in SAM Seal-A-Matic check valve, the 6504 delivers consistent precipitation rates from 11.9 to 19.8 metres — making it a go-to choice for sports fields, parks, golf courses, and large commercial landscapes across New Zealand.

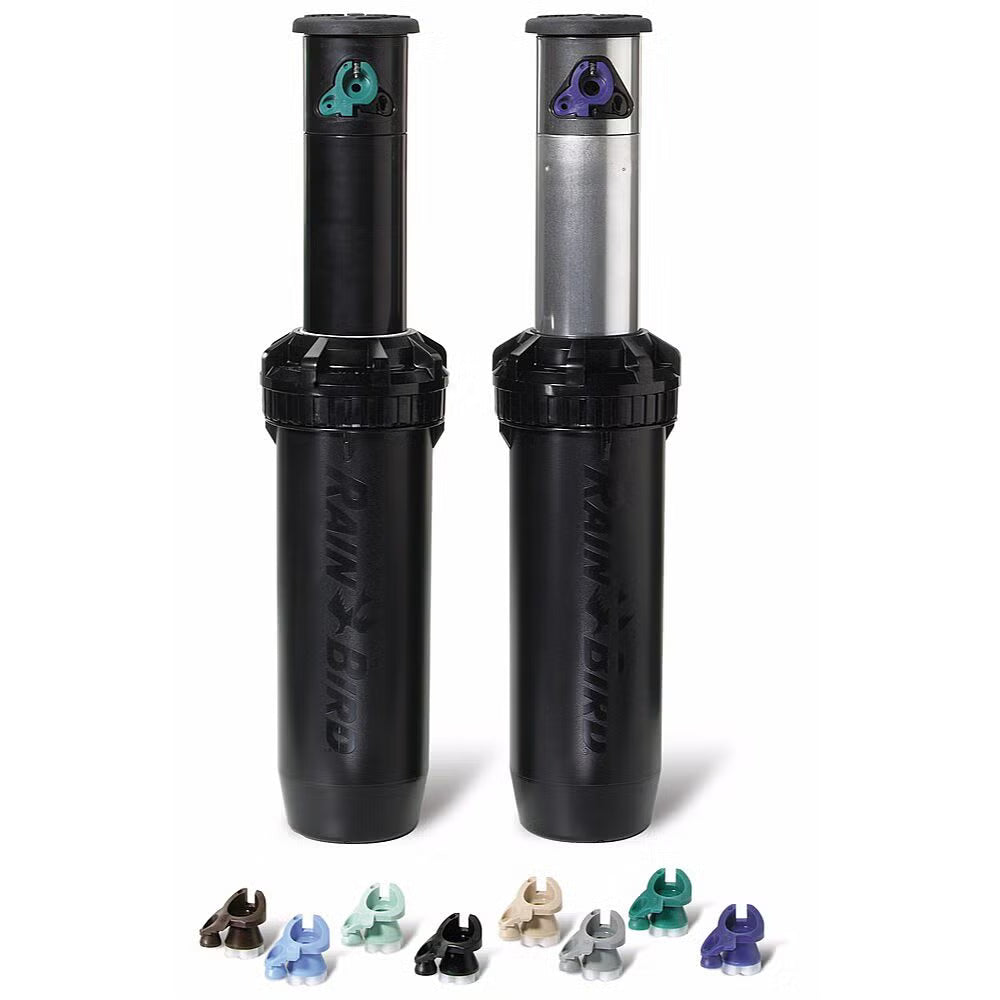

Available in part circle and full circle configurations, with an optional stainless steel riser for high-vandalism or public turf areas (Highly recommended for sandy environments). Nozzles included.
Key Features
Rain Curtain™ Nozzles Included — 3-port, colour-coded nozzles for optimal long-range, mid-range, and close-in watering; additional sizes available on request
SAM Seal-A-Matic Check Valve — holds up to 3.1m of elevation change, preventing low-head drainage and protecting slopes and tiered landscapes
Ratcheting Stem — just like standard spray bodies for easy arc adjustment
Heavy-Duty Stainless Steel Retract Spring — ensures positive pop-down every time for a clean, flush finish
25° Nozzle Trajectory — optimised for long-range throw with minimal wind interference
1" Female NPT or BSP Threaded Inlet — compatible with standard NZ irrigation fittings
Optional Stainless Steel Riser (SS) — deters vandalism on public turf areas such as parks and sports fields
Optional Purple Cover (NP) — for non-potable/recycled water systems
5 Year Warranty — backed by Rain Bird's industry-leading warranty

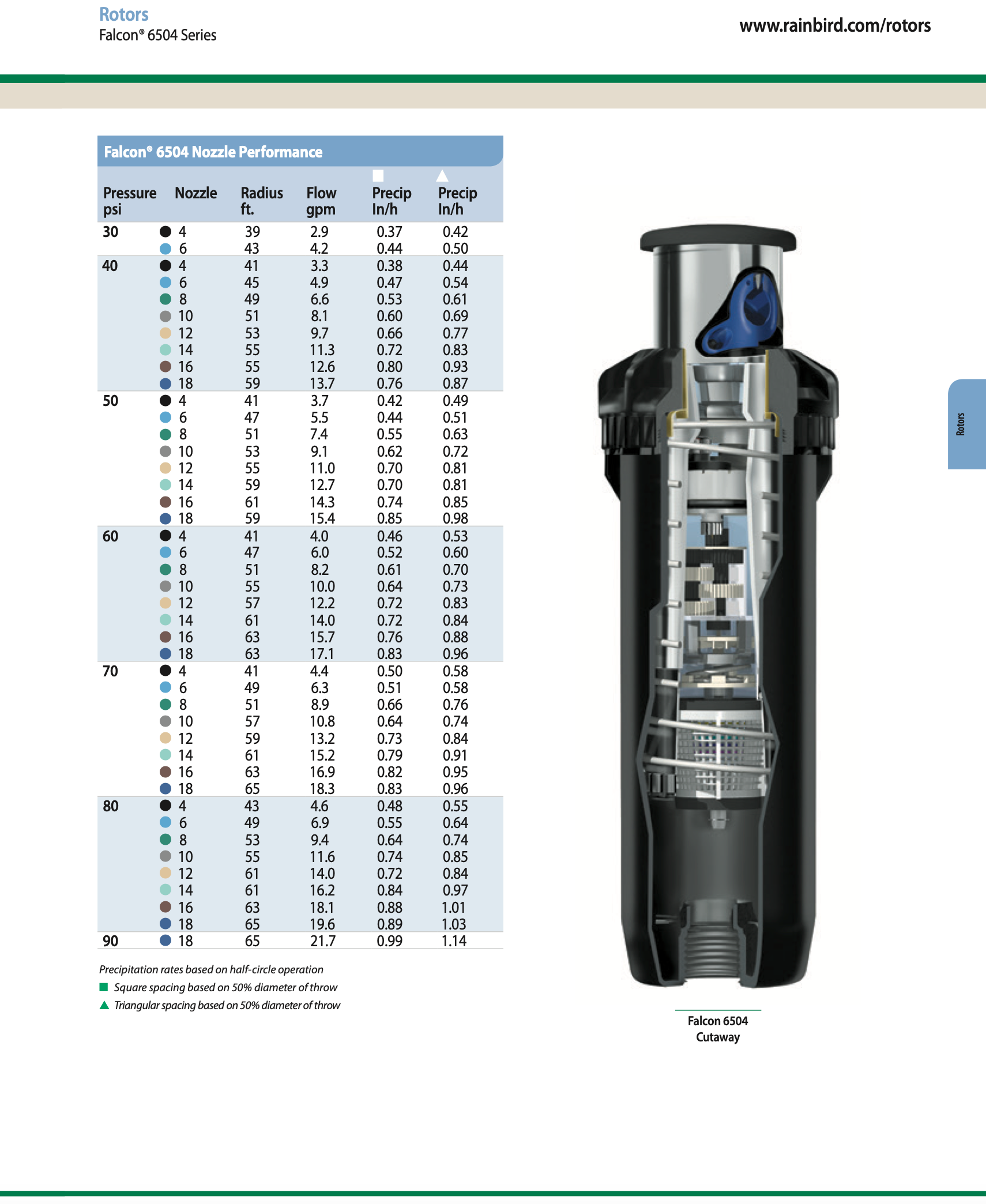

Technical Specifications
Radius: 11.9 to 19.8m (39 to 65 ft)
Pressure: 2.1 to 6.2 Bar (30 to 90 psi)
Flow: 0.18 to 1.37 l/s (2.9 to 21.7 GPM)
Precipitation rate: 9 to 33 mm/h (0.37 to 1.31 in/h)
Nozzle trajectory: 25°
Inlet: 1" (26/34) female NPT or BSP
SAM check valve: holds up to 3.1m elevation change
Overall height: 21.6cm (8½")
Pop-up height: 10.2cm (4")
Exposed surface diameter: 5.1cm (2")

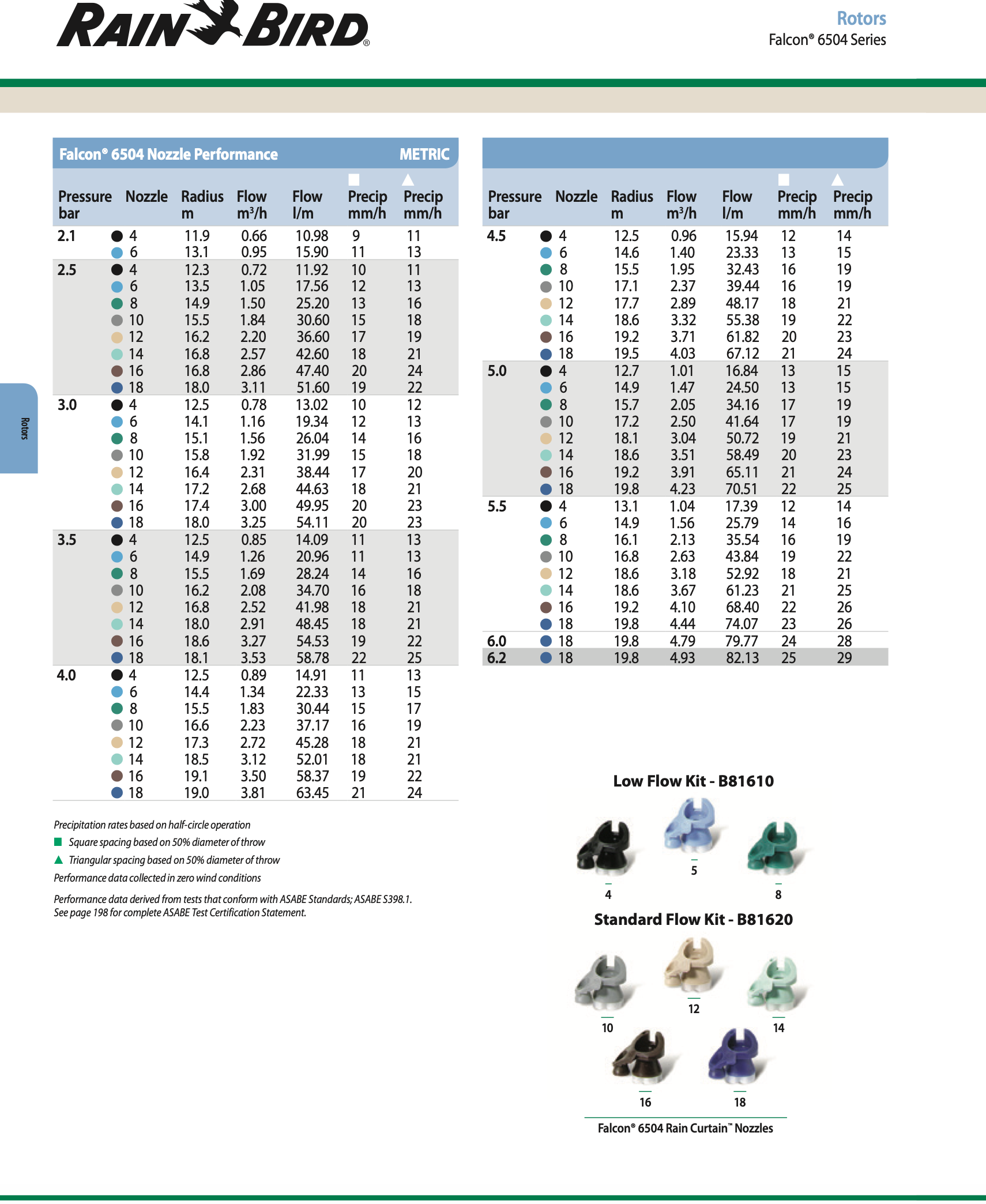

Rain Curtain™ Nozzle Colour Coding
Grey — 10 ft
Beige — 12 ft
Light Green — 14 ft
Dark Brown — 16 ft
Dark Blue — 18 ft
Available Configurations
Part Circle / Standard Body — SKU: RBF4PC — $179.50
Full Circle / Standard Body — SKU: RBF4FC — $179.50
Part Circle / Stainless Steel Body — SKU: RBF4PCSS — $222.50
Full Circle / Stainless Steel Body — SKU: RBF4FCSS — $222.50
Ideal For
Sports fields, parks, golf courses, school grounds, and large commercial landscapes across New Zealand requiring reliable long-range rotor coverage with low-head drainage protection and vandal-resistant options.
