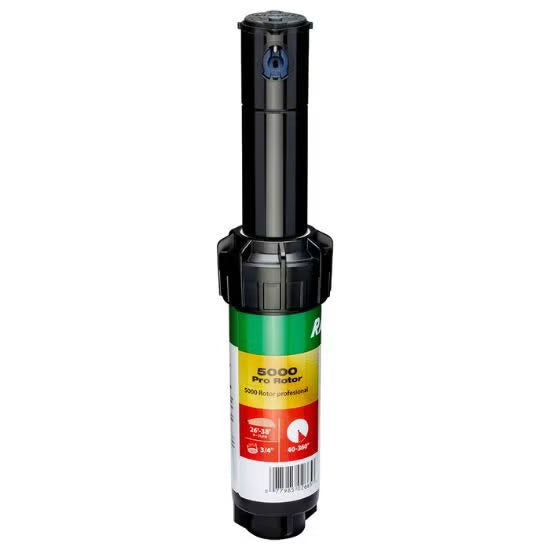

The Rain Bird 5004 is a professional-grade gear-driven rotor built for rugged durability and consistent performance across residential and light commercial turf. Featuring Rain Bird's patented Rain Curtain™ nozzle technology, the 5004 delivers even water distribution across the entire radius — including close to the head — for a greener lawn with less water.
Available in standard 5004 and upgraded 5004 Plus configurations, with a full range of options including SAM check valve, pressure regulation (PRS), stainless steel riser (SS), and non-potable (NP) variants. Each unit includes 12 extra nozzles for precise precipitation rate balancing and trajectory adjustment.
Key Features

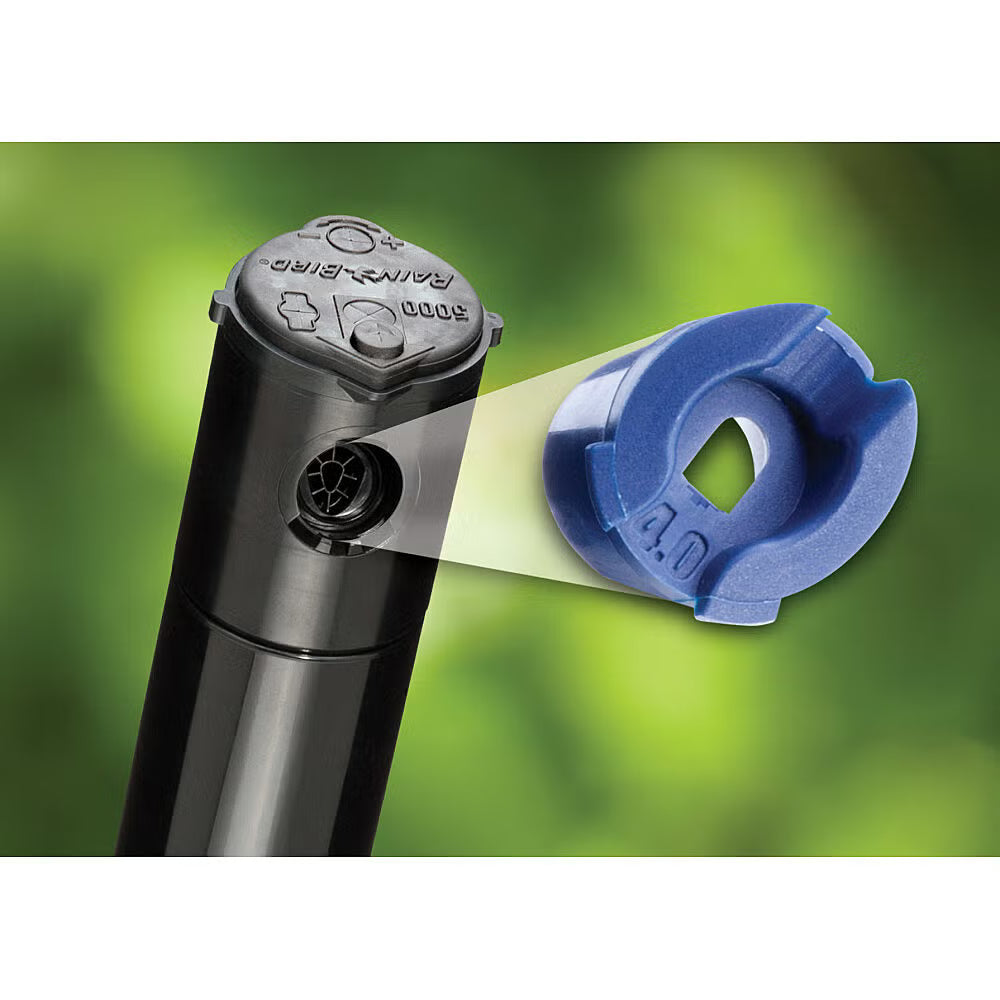

Rain Curtain™ Nozzle Technology — patented design provides even water distribution over the entire radius, including close-in coverage to eliminate dry spots and avoid seed wash-out
12 Extra Nozzles Included — 3 low trajectory (1.0–3.0 gpm) and 8 Rain Curtain nozzles (1.5–8.0 gpm) for balancing precipitation rates or adjusting trajectory to clear low branches or water windy areas
4-Inch Pop-Up Height — clears taller grass for unobstructed throw
Dual-Action Positive Stop Wiper Seal — protects internals from debris; combined with heavy-duty stainless steel spring for positive pop-up and retraction
Top-Adjustable Arc & Radius — simple adjustment using only a flat-bladed screwdriver; radius reducible up to 25% with radius reduction screw
3/4" Female Threaded Bottom Inlet — 20/27 NPT, compatible with standard NZ irrigation fittings
Reversing Full & Part Circle — 40° to 360° arc adjustment
Durable Rubber Cover — built to withstand NZ outdoor conditions
SAM Check Valve (Plus models) — prevents low-head drainage on slopes and tiered landscapes
PRS Pressure Regulation (Plus models) — consistent performance across varying system pressures
Stainless Steel Riser Option (SS) — deters vandalism on public turf areas
Non-Potable Option (NP) — purple cover for recycled/non-potable water systems
5 Year Warranty — backed by Rain Bird's industry-leading warranty
Technical Specifications
Radius: 7.6 to 15.2m (25 to 50 ft) with pre-installed 3.0 gpm nozzle covering 7.9–11.6m (26–38 ft)
Radius reduction: up to 25% with radius reduction screw
Pressure: 1.7 to 4.5 Bar (25 to 65 psi)
Flow rate: 4.2 to 36.6 l/m (0.73 to 9.63 gpm)
Precipitation rate: 5 to 26 mm/h (0.20 to 1.01 in/h)
Arc: 40° to 360° (reversing full and part circle)
Inlet: 3/4" (20/27) NPT female bottom thread
Pop-up height: 10.2cm (4")
Overall body height: 18.5cm (7 3/8")
Exposed surface diameter: 4.1cm (1 5/8")
Available Configurations
5004 / Part Circle — SKU: RB5004PC
5004 / Full Circle — SKU: RB5004FC
5004 Plus / Part Circle — SKU: RB5004PLPC
5004 Plus / Full Circle — SKU: RB5004PLFC
5004 Plus / Part Circle / SAM — SKU: RB5004PLPCS
5004 Plus / Full Circle / SAM — SKU: RB5004PLFCS
5004 Plus / Part Circle / SAM + PRS — SKU: RB5004PLPCSR
5004 Plus / Full Circle / SAM + PRS — SKU: RB5004PLFCSR
5004 Plus / Part Circle / SAM + PRS / NP — SKU: RB5004PLPCSRNP
5004 Plus / Part Circle / SAM + PRS / SS — SKU: RB5004PLPCSRSS
5004 Plus / Full Circle / SAM + PRS / SS — SKU: RB5004PLFCSRSS
5004 Plus / Part Circle / SAM + PRS / SS / NP — SKU: RB5004PLPCSRSSNP
Ideal For
Residential lawns, sports fields, school grounds, and light commercial turf areas across New Zealand requiring reliable, flexible gear-driven rotor coverage with precise precipitation rate control and a clean pop-down finish.
