Trevoli CM Series Stainless Steel Multistage Pumps
Quiet, reliable pressure boosting for domestic water systems
The Trevoli CM Series is a range of stainless steel multistage pumps designed to provide reliable pressure and water supply for homes, lifestyle blocks and other domestic applications.
With quiet operation, stainless steel components throughout the pumped-water path and continuous-duty motors, the CM Series is well suited to domestic water supply systems where suction is not required.
Five models are available across the CM2 and CM4 ranges, providing options for smaller homes through to larger multi-level homes and lifestyle blocks.
Key Features
-
Quiet-running multistage design for reduced noise in domestic environments
-
Stainless steel water-contact components for durability and clean-water applications
-
Domestic pressure boosting where suction is not required
-
Continuous-duty rated for ongoing operation
-
Thermal overload protection to help protect the motor during operation
-
Ready to connect, supplied with a 1.5 metre power cable and 3-pin plug
-
CM12 configuration supplied with a 15 amp plug
Construction
The CM Series uses stainless steel components throughout the pumped-water path, including the suction and discharge chambers, impellers, stages and motor shaft.
The mechanical seal is constructed from machine-made carbon, silicon carbide and EPDM, while low-noise bearings contribute to the pump's quiet-running characteristics.
Construction Materials
| Component |
Material / specification |
| Suction and discharge chambers |
Stainless steel |
| Impellers and stages |
Stainless steel |
| Motor shaft |
Stainless steel |
| Mechanical seal |
Carbon / silicon carbide / EPDM |
| Bearings |
Low-noise design |
Series Specifications
| Specification |
Trevoli CM Series |
| Liquid temperature |
0–70°C |
| Maximum operating pressure |
10 bar |
| Enclosure class |
IP55 |
| Insulation class |
F |
| Duty rating |
Continuous |
Model Specifications
| Model |
HP |
kW |

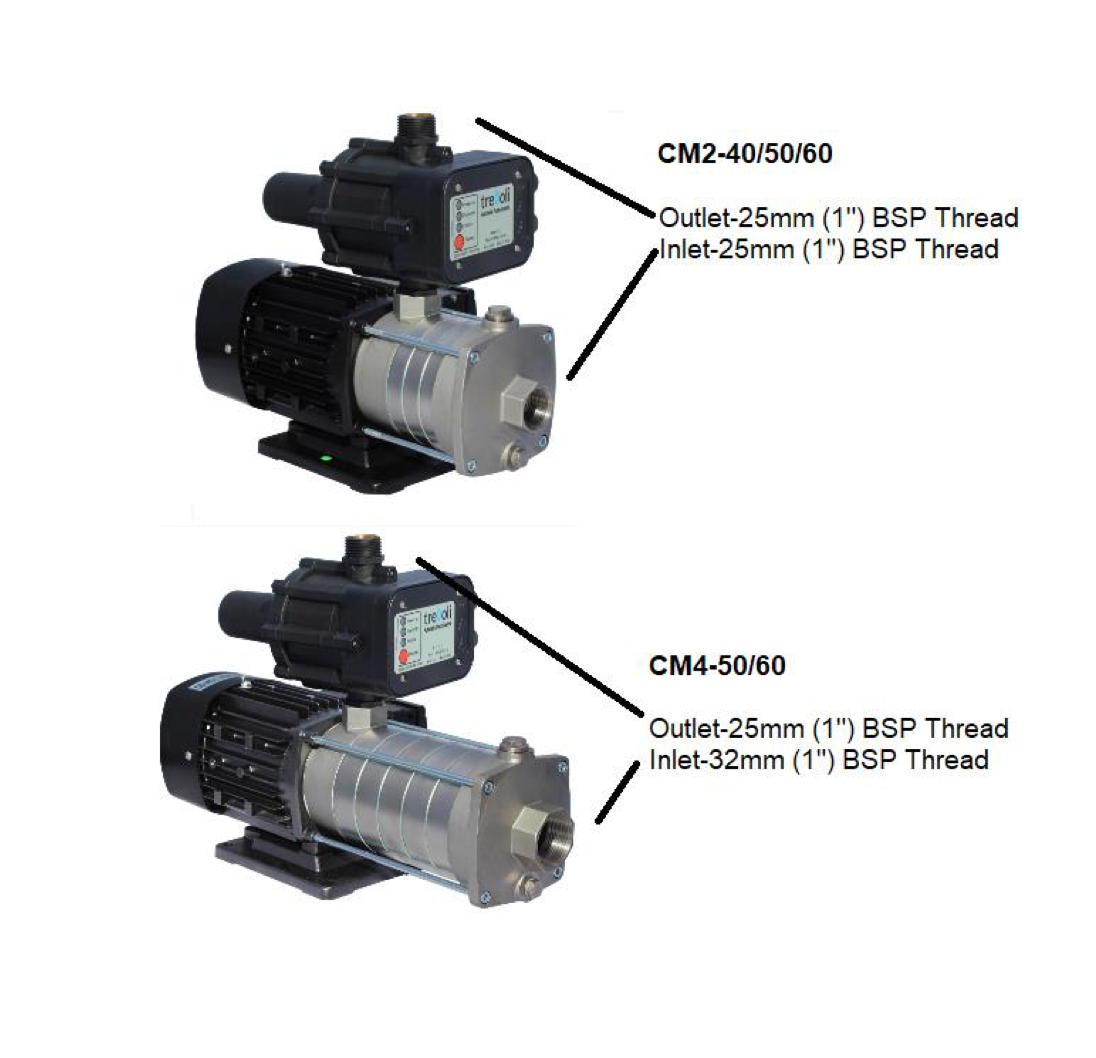

Inlet / Outlet |
Phase |
Voltage |
Current |

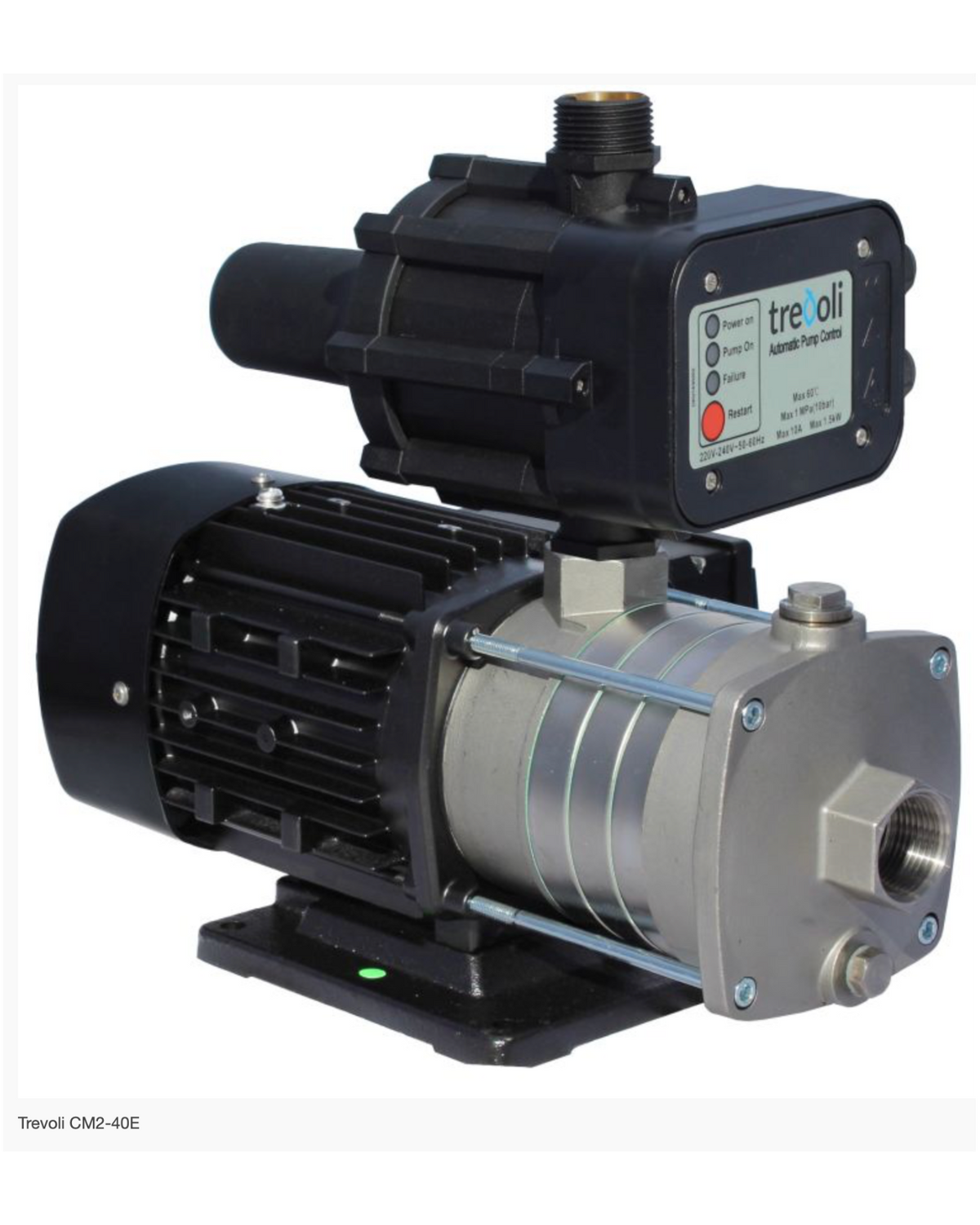

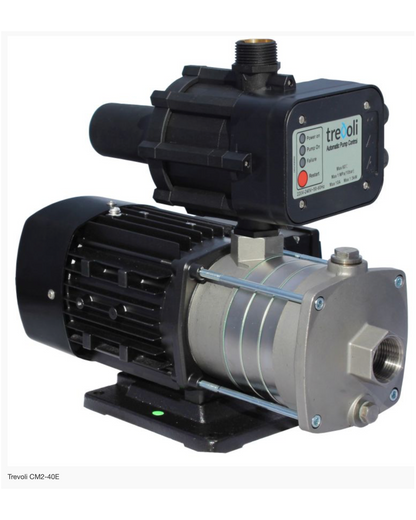

| CM2-40 |
0.7 |
0.5 |
25 / 25 mm |
1 |
220–240 V |
3.9 A |

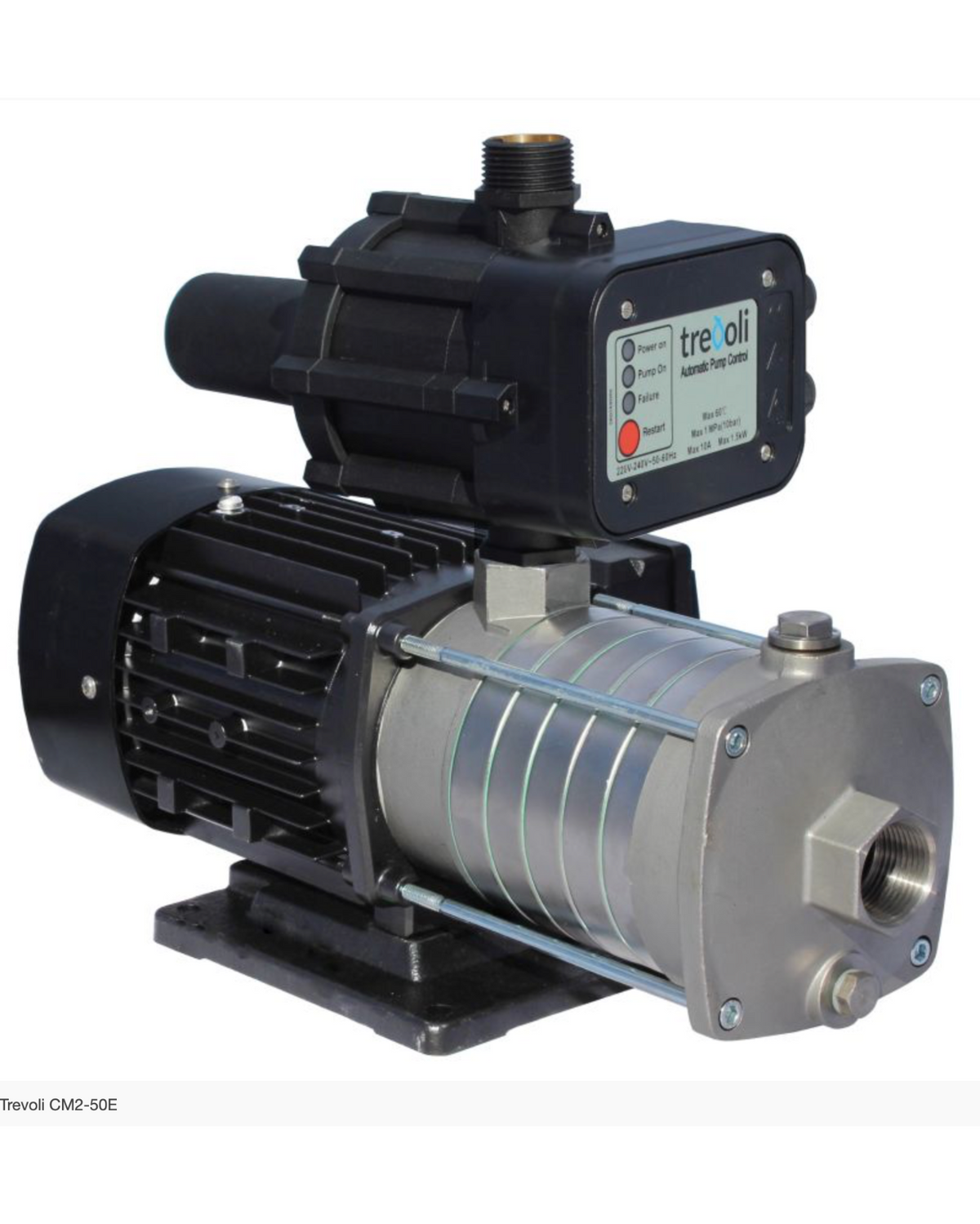

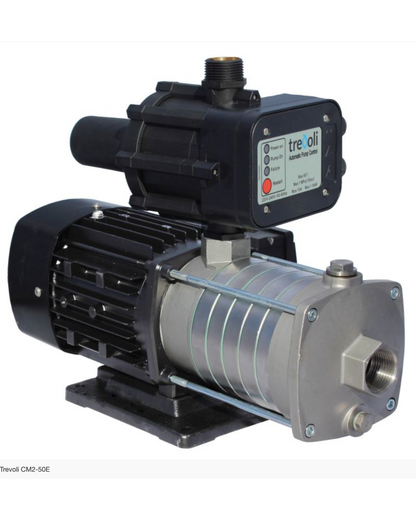

| CM2-50 |
0.7 |
0.5 |
25 / 25 mm |
1 |
220–240 V |
3.8 A |

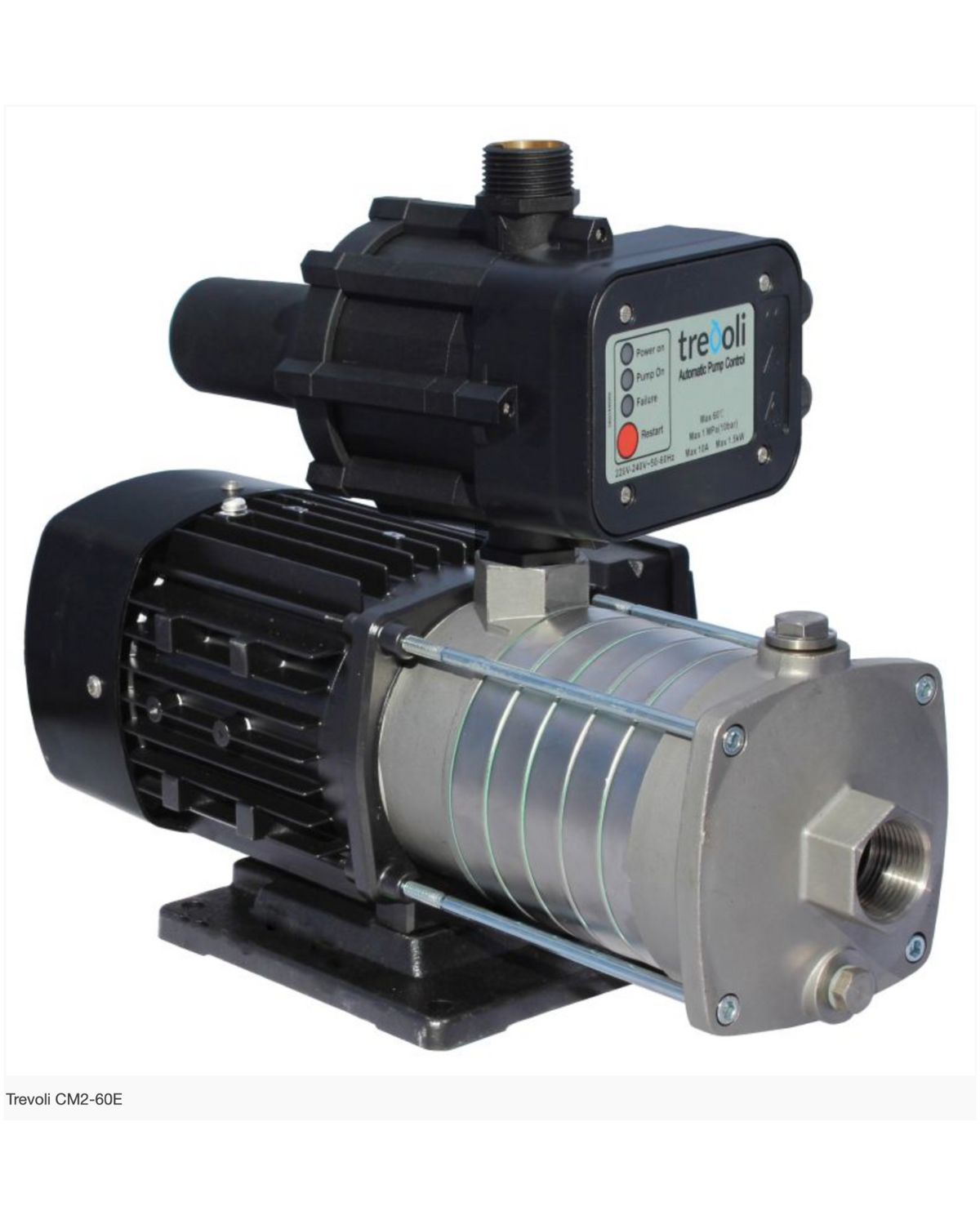

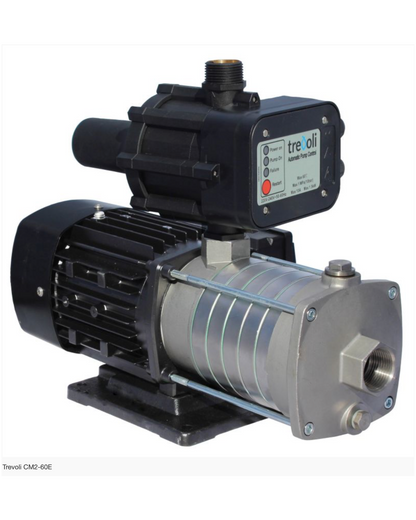

| CM2-60 |
1.0 |
0.7 |
25 / 25 mm |
1 |
220–240 V |
5.2 A |

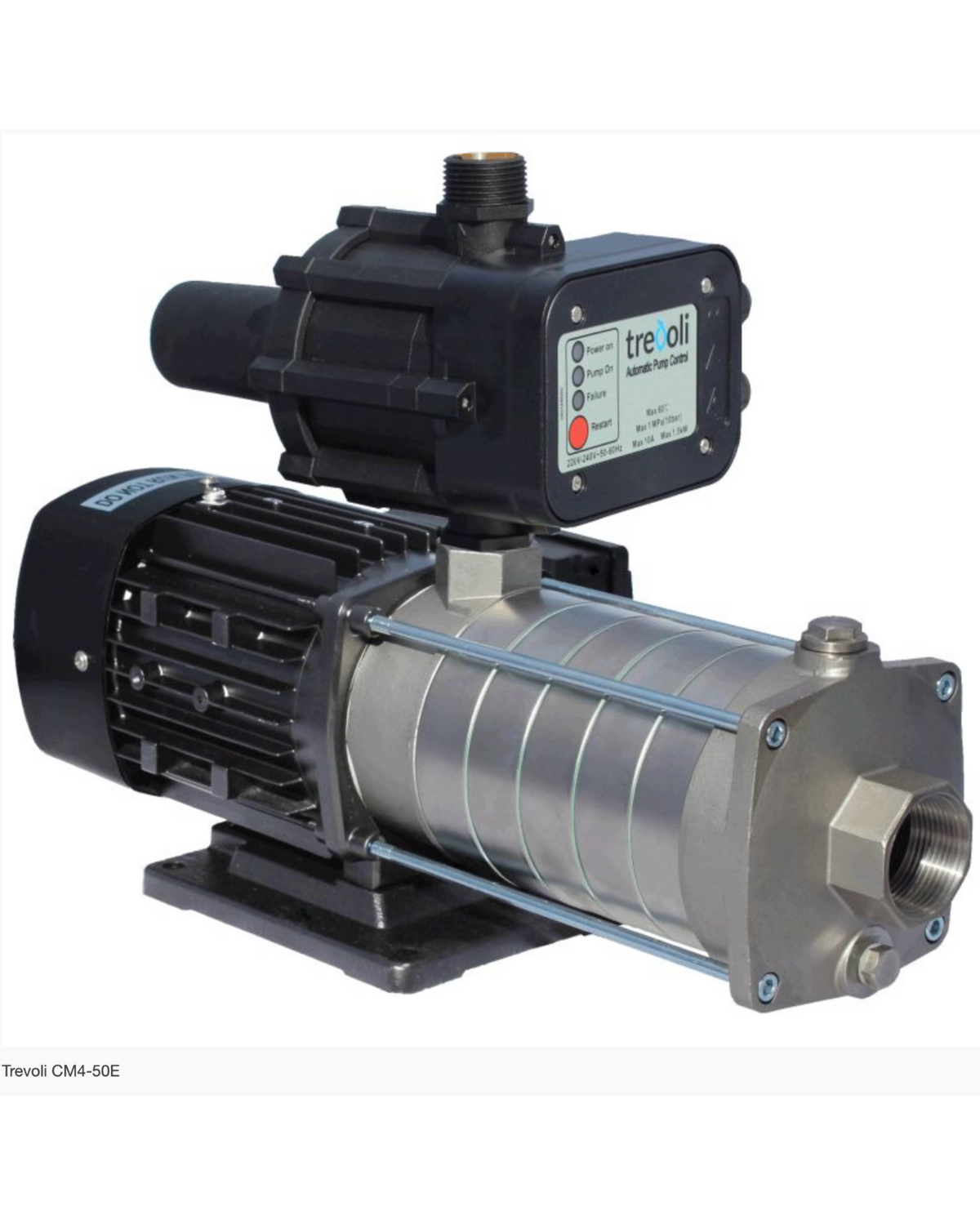

| CM4-50 |
1.4 |
1.0 |
32 / 25 mm |
1 |
220–240 V |
6.2 A |

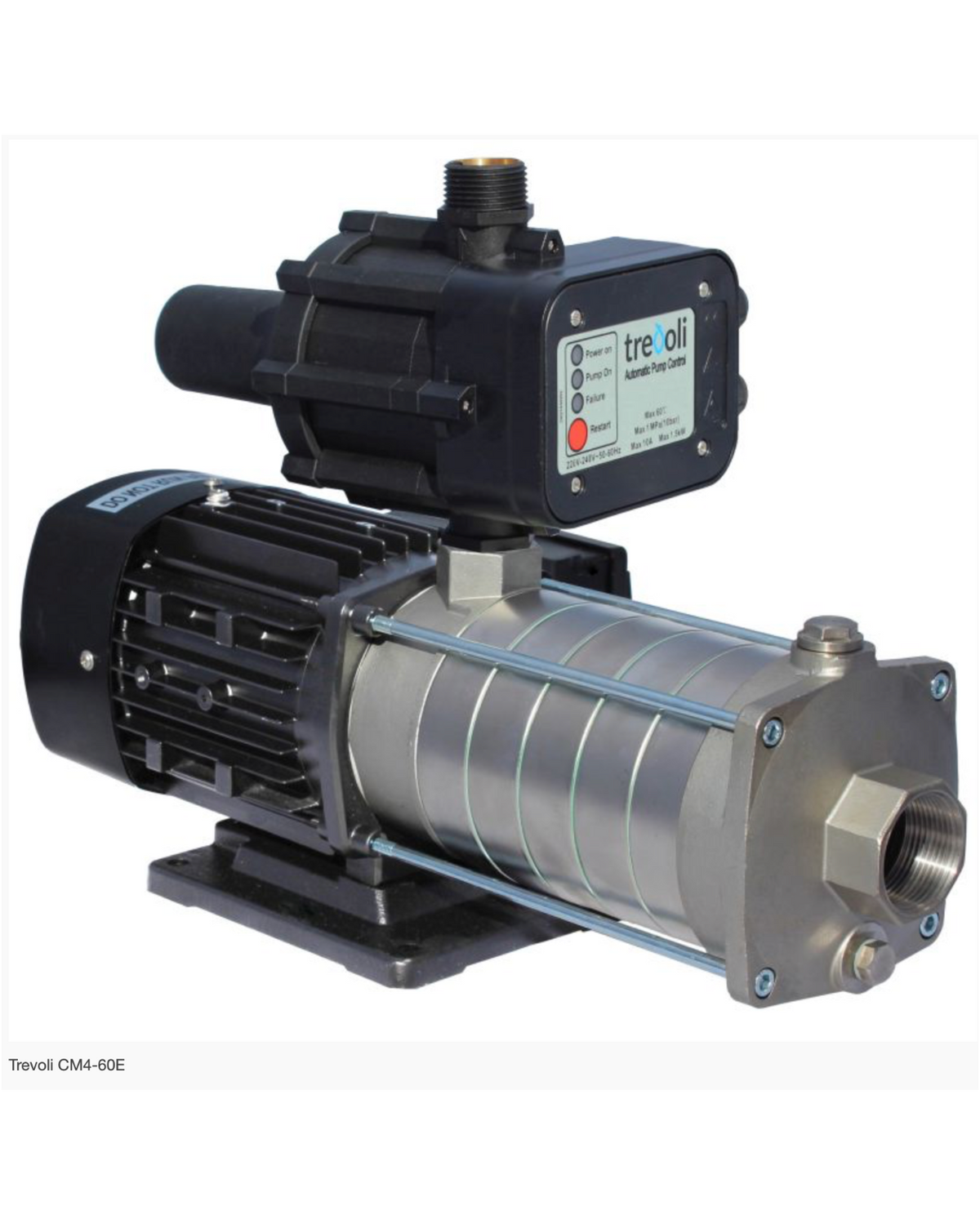

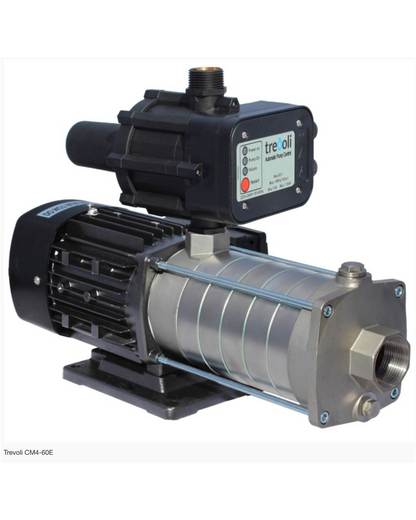

| CM4-60 |
1.5 |
1.1 |
32 / 25 mm |
1 |
220–240 V |
7.0 A |
Ideal Applications
The Trevoli CM Series is suited to:
- Domestic water supply systems
- Pressure boosting in homes
- Single-level and multi-level homes
- Lifestyle blocks
- Domestic water systems where suction is not required
- Clean-water pumping applications
Selecting the Right Pump
Choosing the correct multistage pump depends on the required flow rate, pressure, total head and pipework configuration.
The CM2 and CM4 models offer different performance characteristics, so the correct model should be selected based on the actual requirements of the installation rather than motor size alone.
If you're unsure which Trevoli CM model is right for your system, contact WTS. We can help assess the required flow, pressure and connection requirements and select a pump to suit the application.

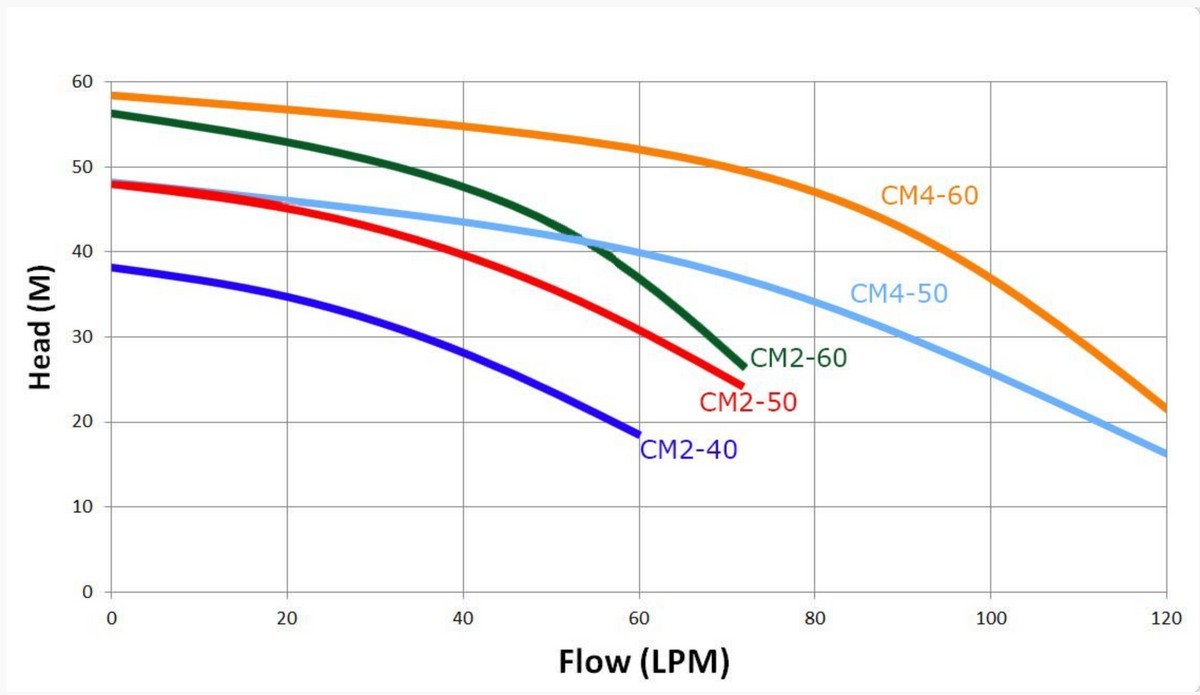

Please check the individual model performance data and installation documentation before installation.
** BARE PUMP ONLY- CONTROLLER MUST BE PURCHASED SEPARATELY **
