Bianco Multi-Pro Stainless Steel Pressure Systems

Intelligent pressure boosting for homes, lifestyle properties, farms and garden watering

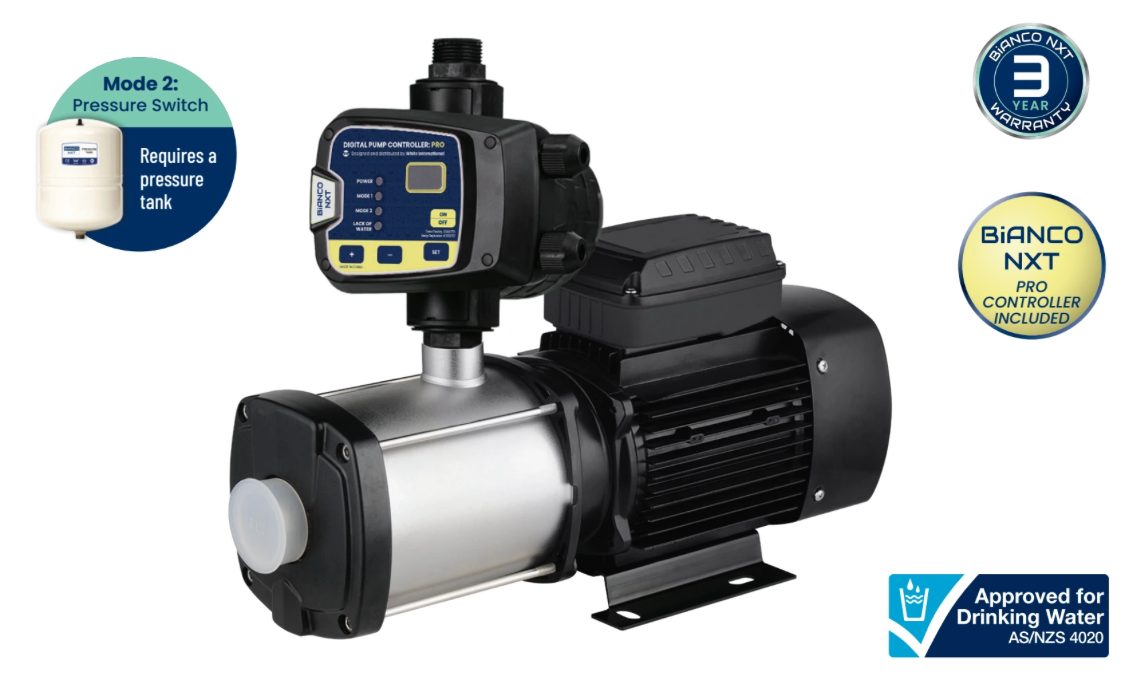

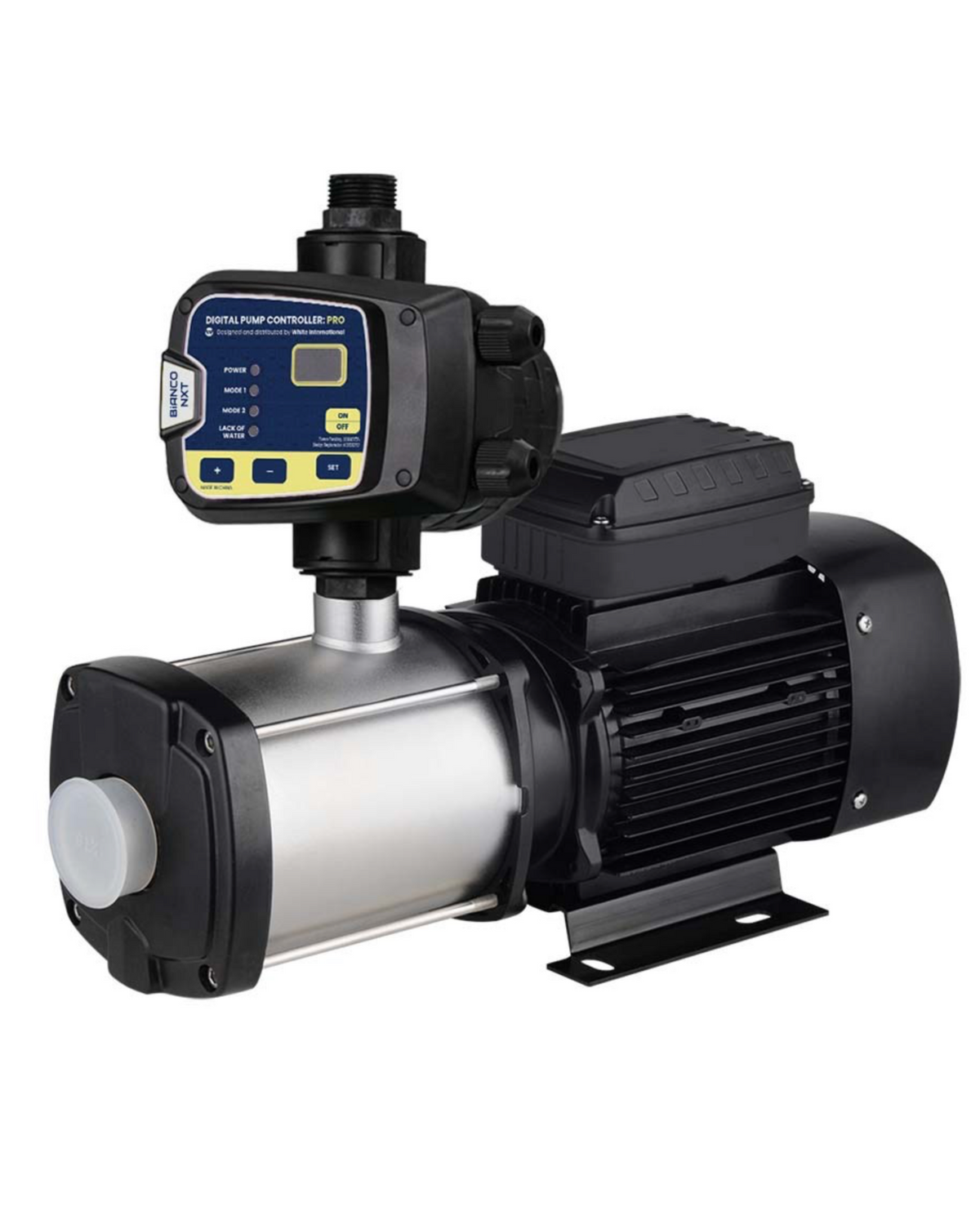

The Bianco Multi-Pro is a complete pressure-boosting system combining a stainless steel horizontal multistage pump with a Bianco NXT Pro digital pump controller.

Designed for clean-water applications, the Multi-Pro provides reliable automatic water pressure for domestic water supply, suction wells, agricultural applications and garden watering.

With three system sizes available, the range covers smaller household water systems through to higher-demand installations serving up to 23 taps.

Intelligent NXT Pro Pump Control

The Bianco NXT Pro is a digital single-pump controller designed to provide reliable automatic control and protection for the Multi-Pro system.

Tested in Australasia and designed for demanding operating environments, the NXT Pro uses two selectable operating modes to suit different pressure-system requirements.

Mode 1: Pressure Controller

The pump starts at a user-adjustable pressure set point and stops when the flow falls.

This mode provides automatic pressure control while the system is in use and is well suited to applications where maintaining consistent water pressure is important.

Mode 2: Pressure Switch

The pump starts when the pressure falls to the lower pressure set point and stops when the upper pressure set point is reached.

This provides conventional pressure-switch operation with adjustable start and stop pressures.

Built-In Pump Protection

The NXT Pro provides a range of monitoring and protection functions designed to help protect the pump and improve system reliability, including:

• Dry-run protection with automatic restart

• Low-flow protection

• Frequent-start / anti-cycling protection

• Underload protection

• Overload protection

• Maximum continuous run-time protection

• Adjustable pressure set points

• User-programmable pump functions

The controller can also be installed in any orientation, providing greater flexibility during installation.

A Complete Pressure System

The Multi-Pro combines the NXT Pro controller with a stainless steel horizontal multistage pump, providing a compact solution for automatic pressure boosting.

The stainless steel pump construction is designed for clean-water applications, while the digital controller manages pump operation and provides protection against a range of common operating conditions.

The controller also incorporates 1" or 1 ¼" outlet options and a removable accumulator, depending on configuration.

Key Features

• Bianco NXT Pro digital pump controller

• Dual operating modes: pressure controller or pressure switch

• User-adjustable pressure set points

• Dry-run protection with automatic restart

• Low-flow protection

• Frequent-start / anti-cycling protection

• Underload and overload protection

• Maximum continuous run-time protection

• Stainless steel horizontal multistage pump

• Drinking water approved for suitable potable-water installations

• Three system sizes from 0.75 kW to 2.2 kW

• Up to 23 taps, depending on model and system requirements

• 240 V single-phase operation

• Suitable for suction well applications

• Suitable for agricultural water supply

• Suitable for garden watering and irrigation applications

• 24-month Bianco Pumps warranty

Applications

The Bianco Multi-Pro is suited to a wide range of clean-water pressure applications.

Domestic Water Supply

Boost water pressure throughout the home for showers, taps, appliances and other outlets where additional pressure is required.

Lifestyle Properties

A practical pressure-boosting solution for homes and lifestyle blocks where reliable automatic water supply is required.

Suction Well Systems

Suitable for water supply systems drawing from suction wells, subject to the pump's suction and installation requirements.

Agricultural Applications

The larger Multi-Pro configurations provide higher flow capacity for suitable agricultural water supply applications.

Garden Watering

Suitable for supplying garden watering and irrigation systems where automatic pump control and reliable pressure are required.

Choose the Right Multi-Pro Configuration

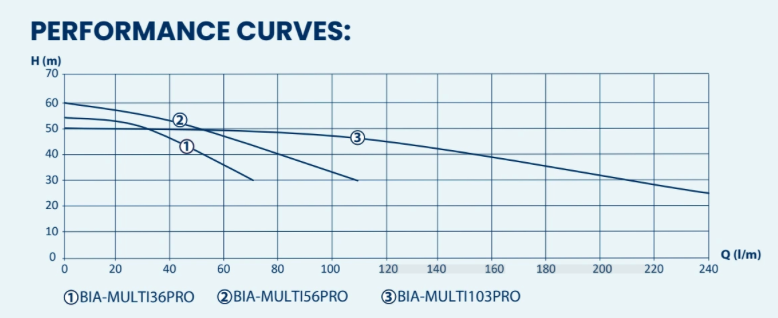

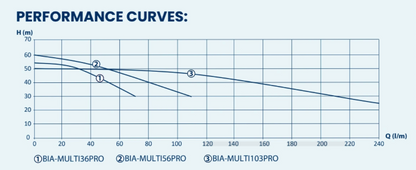

The three Multi-Pro configurations provide different flow and pressure capabilities:

Power	Max. Flow	Max. Head	Maximum Pressure	Approx. Tap Capacity
0.75 kW / 1.0 HP	70 L/min	55 m	538 kPa / 5.4 bar	7 taps
1.3 kW / 1.75 HP	108 L/min	60 m	587 kPa / 5.9 bar	10 taps
2.2 kW / 3.0 HP	233 L/min	49 m	480 kPa / 4.8 bar	23 taps

Tap capacity is a guide based on the specified system configuration. Actual performance depends on the required flow, pressure, pipework, elevation and simultaneous demand.

Technical Specifications

Specification	0.75 kW	1.3 kW	2.2 kW
Power	750 W / 1.0 HP	1300 W / 1.75 HP	2200 W / 3.0 HP
Voltage	240 V	240 V	240 V
Pump type	Stainless steel horizontal multistage	Stainless steel horizontal multistage	Stainless steel horizontal multistage
Inlet	1" BSPF	1 1/4" BSPF	1 1/2" BSPF
Outlet	1" BSPM	1" BSPM	1 1/4" BSPM
Water suitability	Clean water	Clean water	Clean water
Controller	NXT Pro	NXT Pro	NXT Pro

Technical Features

Brand: Bianco Pumpz
Product type: Pressure system
Pump type: Stainless steel horizontal multistage pump
Controller: Bianco NXT Pro digital pump controller
Operating modes: Pressure controller / pressure switch
Power supply: 240 V single phase
Water suitability: Clean water
Drinking water approval: Yes
Float: No
Warranty: 24 months

Why Choose the Multi-Pro?

The Multi-Pro brings together a stainless steel multistage pump and intelligent digital pump control in one complete pressure system.

The NXT Pro's dual operating modes allow the system to be configured for either pressure-controller or conventional pressure-switch operation, while its built-in protection functions help safeguard the pump against dry running, low flow, excessive starting, overload and other operating conditions.

With three pump sizes available, the Multi-Pro can be matched to a wide range of domestic, lifestyle and higher-demand clean-water applications.

Need Help Choosing a Model?

Selecting the right pressure system requires more than simply matching the number of taps. The required flow rate, pressure, total head, pipework, elevation and likely simultaneous demand should all be considered.

If you're unsure which Multi-Pro configuration is right for your application, contact WTS. We can help assess your requirements and select a pressure system suited to the installation.

Always check the pump performance curve and installation requirements against the actual system duty point before selecting and installing a pump.
