Eco-Pure Underbench Water Filter Kit
Eco-Pure Underbench Water Filter Kit

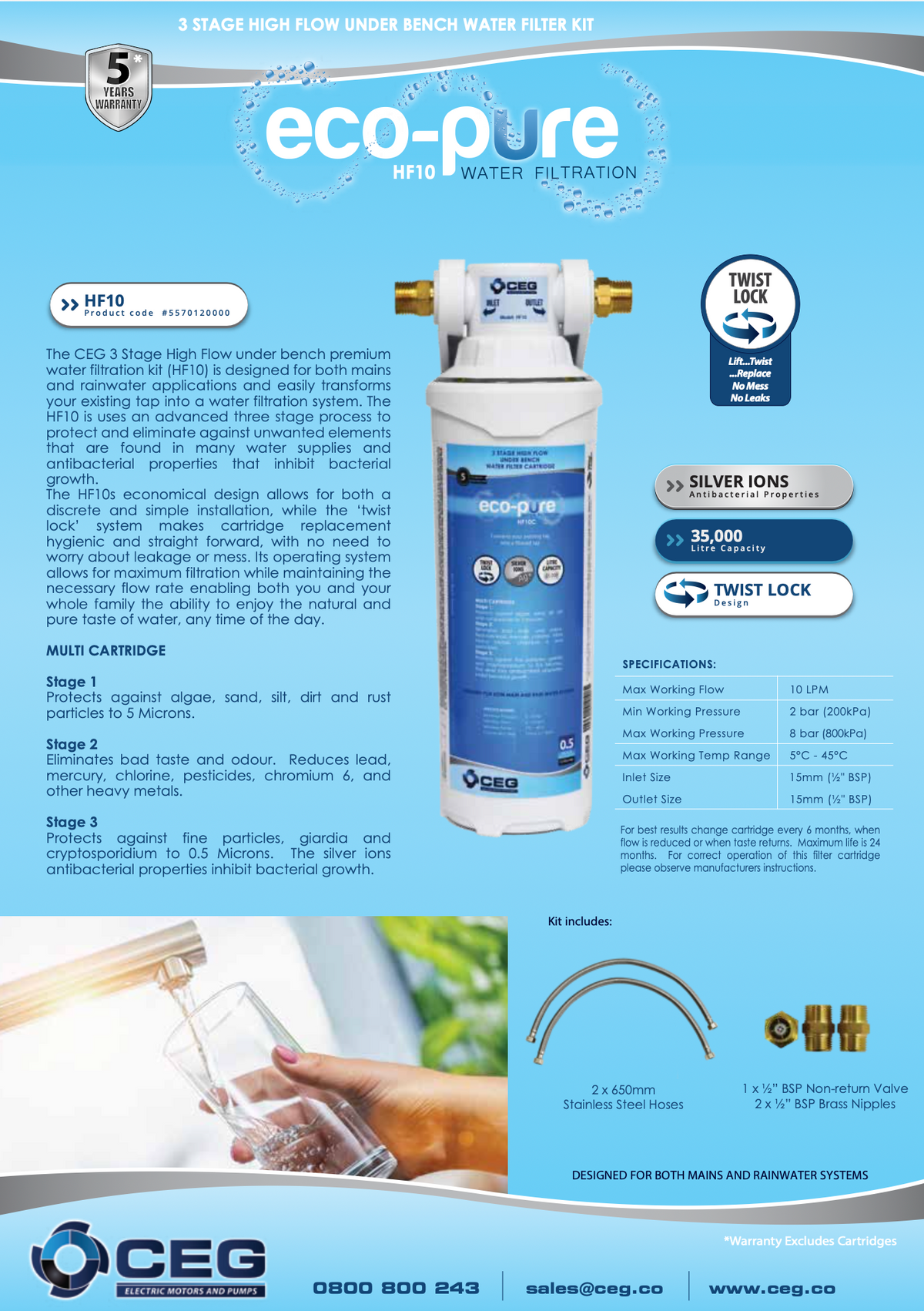

Eco-Pure HF10 Three-Stage Underbench Water Filter Kit
The CEG Eco-Pure HF10 Underbench Water Filter Kit provides three-stage filtration for mains and rainwater supplies, connecting to an existing kitchen tap for convenient, discreet underbench water treatment.
Its multi-stage cartridge combines sediment filtration, taste and odour improvement, and fine-particle filtration in one compact unit. Designed for everyday kitchen use, the HF10 has a maximum flow rate of 10 litres per minute and a cartridge capacity of 35,000 litres.
Key Features
-
Three-stage filtration: Combines sediment, taste and odour, and fine-particle filtration in a single cartridge.
-
Sediment and fine-particle reduction: Progressive filtration from 5 to 0.5 microns.
-
Improved water taste and odour: Targets chlorine and other substances identified by the manufacturer.
-
Contaminant reduction: Reduces* lead, mercury, pesticides, chromium VI and other heavy metals.
-
Pathogen reduction: The final filtration stage reduces* Giardia and Cryptosporidium
-
Silver-ion technology: Helps inhibit* bacterial growth within the cartridge.
-
Convenient cartridge replacement: Twist-lock design simplifies routine maintenance.
-
Complete installation kit: Includes two stainless steel hoses, a brass non-return valve and two brass nipples.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CEG Eco-Pure |
| Model | HF10 |
| Product code | 557012000 |
| Filter configuration | Three-stage, single cartridge |
| Nominal filter size | 10 inch |
| Filtration range | 5 to 0.5 microns |
| Maximum working flow | 10 L/min |
| Stated cartridge capacity | 35,000 litres |
| Working pressure | 2–8 bar |
| Water temperature | 5–45°C |
| Inlet and outlet | ½ inch BSP (15mm) |
| Dimensions (W × H × D) | 300 × 350 × 140mm |
| Weight | 3kg |
| Warranty | 5 years, subject to manufacturer exclusions |
Kit Contents
-
Eco-Pure HF10 filter assembly with multi-stage cartridge
-
2 × 650mm stainless steel hoses
-
1 × ½ inch BSP brass non-return valve
-
2 × ½ inch BSP brass nipples
Cartridge Replacement and Maintenance
For best results, the manufacturer recommends replacing the cartridge every six months, or sooner if water flow decreases or unwanted taste returns. The stated maximum cartridge life is 24 months, subject to operating conditions.
The 35,000-litre capacity is not a substitute for the recommended maintenance interval. Actual cartridge life will depend on water quality and usage.
Important: *Reduction is not elimination have untreated rainwater assessed to determine whether additional treatment is required for safe drinking water.
Suitable for specified mains and rainwater applications within the operating limits. Follow the manufacturer's installation, maintenance and operating instructions.
