The DAB K Series is a range of robust centrifugal pumps designed for water transfer, pressure boosting, irrigation and general water supply applications.
The range includes single and twin impeller models, with options covering a wide range of flow and head requirements. Models are available in both single-phase and three-phase configurations.
WTS can assist with pump selection, system design, installation and servicing to ensure the pump is correctly matched to your required flow, pressure and operating conditions.
Key Features
Robust centrifugal pump range
Single and twin impeller models
240 V and 415 V options
Flow rates up to 1,300 L/min
Maximum heads up to 95 m
Suitable for irrigation, water transfer and pressure boosting
Multiple connection sizes available
Suitable for agricultural, rural and commercial applications
Performance curves available for accurate pump selection
Applications
The DAB K Series is suitable for:
Agricultural and farm water supply
Irrigation systems
Water transfer
Tank filling and transfer
Pressure boosting
Rural water supply
Commercial water systems
General water pumping
Available Models

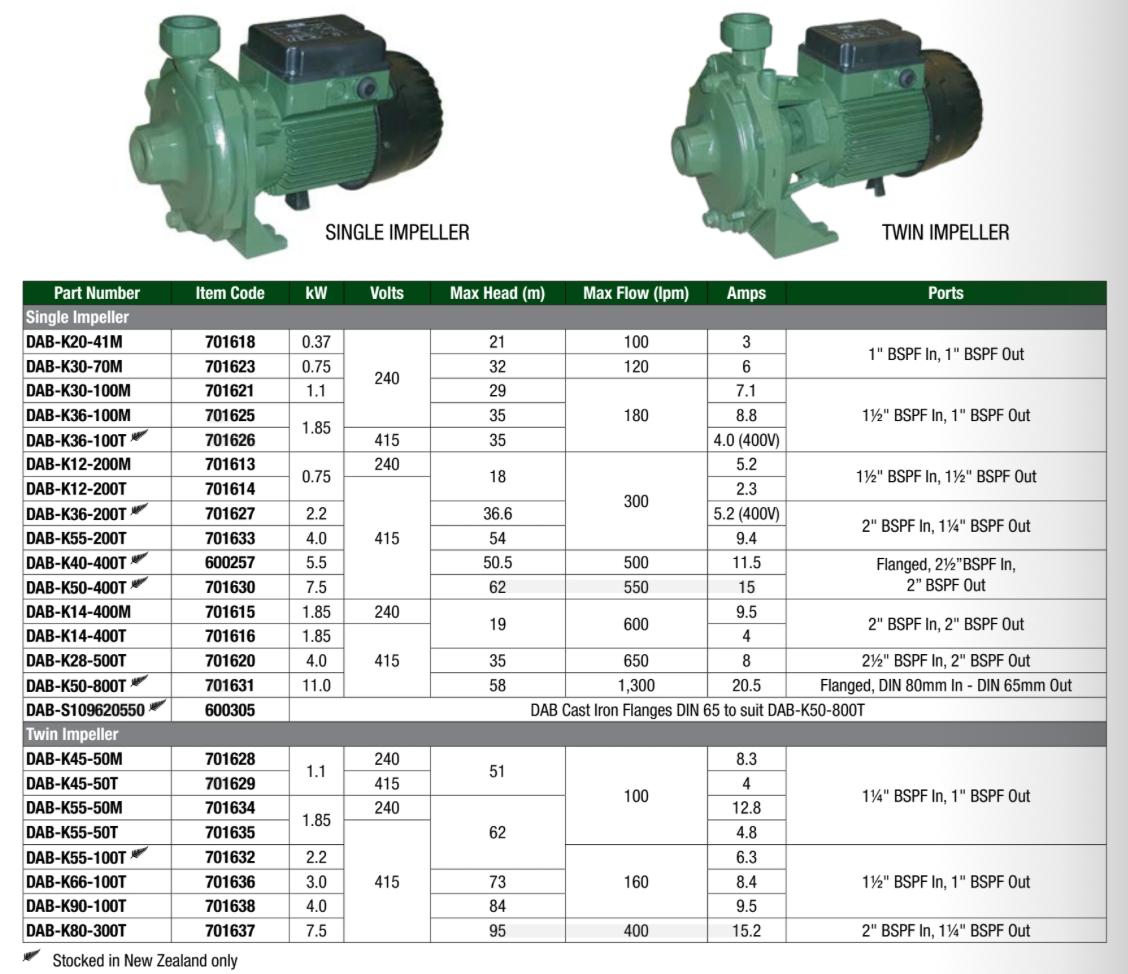

Detailed model specifications are shown in the tables below.
Insert supplier specification table image here
Performance Curves
The K Series includes a wide range of performance characteristics across the single and twin impeller models.
Pump selection should be based on the required flow rate and total dynamic head, rather than maximum head or maximum flow figures alone.
Pump Selection & Installation
Choosing the right pump involves more than simply matching flow and maximum head.
WTS can assist with:
Pump duty calculations
Flow and pressure requirements
Pipework and friction-loss considerations
Irrigation pump selection
Tank-to-house and tank-to-irrigation systems
Pressure boosting
Pump control and protection
Complete pump supply and installation
For irrigation projects, we can also design the system around the required flow, pressure and hydraulic performance.
Need help choosing the right pump? Talk to WTS before purchasing.
