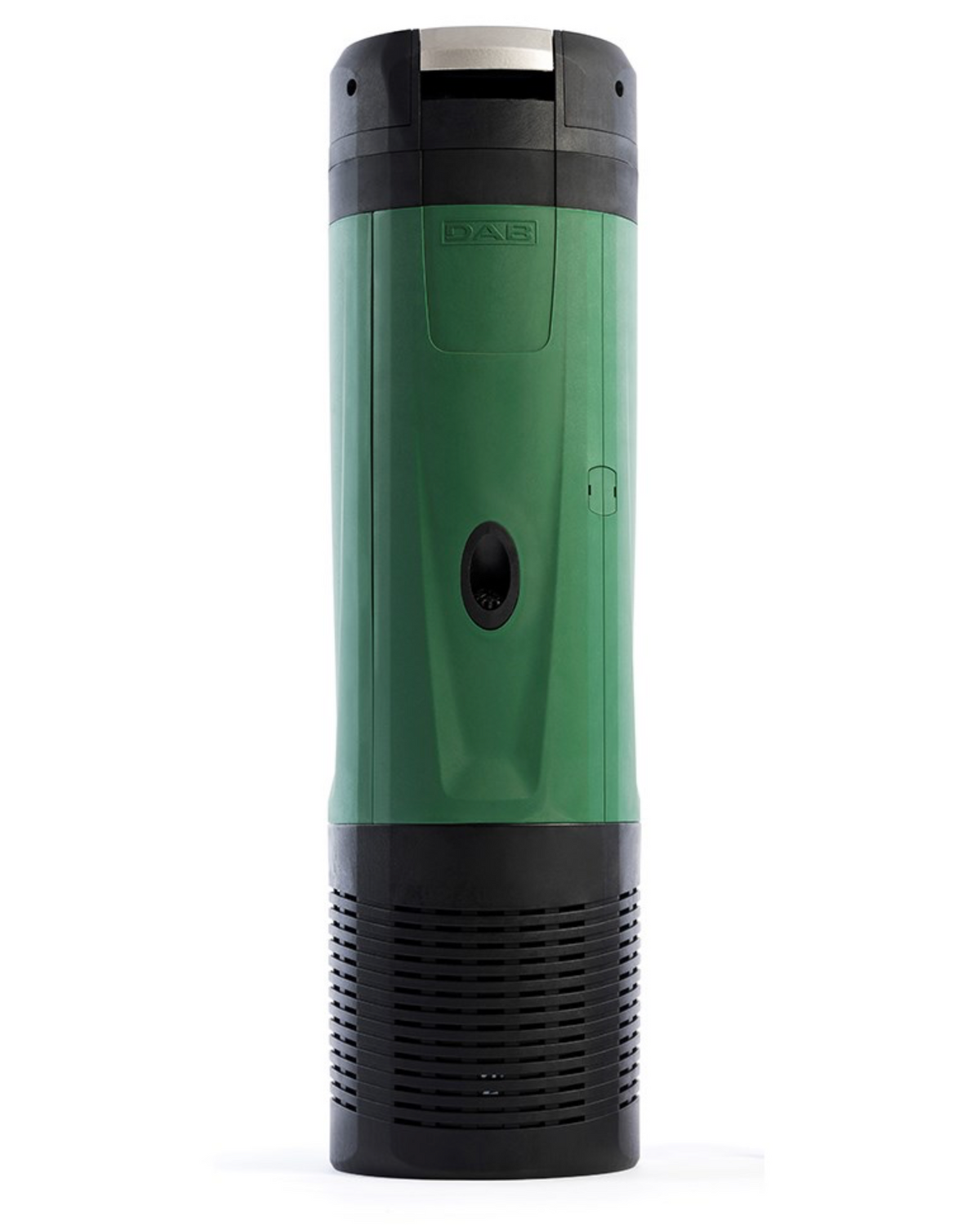

DAB ESYDIVER 7" Electronic Multistage Submersible Pump with Inverter

The DAB ESYDIVER is a 7-inch electronic multistage submersible pump with integrated inverter, engineered for reliable pressure-boosting, irrigation and water supply applications. Combining smart connectivity, variable-speed inverter control and robust submersible construction, the ESYDIVER delivers consistent pressure performance while protecting against dry running and water hammer.

With built-in DAB DConnect Box 2 compatibility, the ESYDIVER connects to the DAB Cloud Service, allowing full remote monitoring and management from your smartphone or tablet — wherever you are.

Applications

• Residential and rural water supply
• Irrigation and horticulture
• Pressure boosting systems
• Tank filling and water transfer
• Agricultural water supply
• Commercial and light industrial water supply

Key Features

• Integrated Inverter: Variable-speed inverter drive delivers consistent system pressure and reduces energy consumption compared to fixed-speed pumps
• DAB DConnect Box 2: Connects to the DAB Cloud Service for remote monitoring and management of system pressure, alarms and tank water levels via smartphone or tablet
• Optional External Float: Detects water level in a tank to prevent tank emptying and protect against dry running due to low water level
• Bleed Valve: Allows immediate priming upon initial installation for fast and easy commissioning
• Modular Construction: Modular pump components simplify servicing and maintenance
• Integrated Expansion Vessel: Prevents unnecessary pump restarts, protects against water hammer and extends pump service life
• DOC68 Accessory / IP68 Rated: Allows the ESYDIVER to be installed out of water and used as a traditional booster pump
• Wide Application Range: Suitable for a broad range of pressure-boosting, irrigation and water supply duties
• Ergonomic Carry Handle: Designed for easy transportation and installation
• Temperature Resistance: Suitable for high and low ambient temperature environments
• Drinking Water Certified: Approved for use in potable water supply systems
• Warranty: 2-year parts and labour warranty

Smart Connectivity — DAB DConnect Box 2

The DAB ESYDIVER is compatible with the DConnect Box 2, giving you access to the DAB Cloud Service. Using the DAB app on your smartphone or tablet, you can:

• Monitor and manage system pressure remotely
• View and acknowledge alarms from anywhere
• Check residual water availability in your tank
• Access pump status and performance data in real time

Remote monitoring is particularly valuable for rural and agricultural installations where the pump may be located away from the main building or control point.

Dry-Run Protection

The optional external float switch detects the water level inside the supply tank. When the water level drops below the float trigger point, the pump is automatically stopped to prevent dry running — protecting the pump motor and extending service life.

Technical Specifications

Specification	Value
Brand	DAB Pumps
Pump Type	7" Electronic Multistage Submersible Pump with Inverter
Motor Power	1.0 kW
Voltage	240V
Maximum Head	55 m
Maximum Flow	120 L/min
Maximum Pressure	2.4 bar
Outlet Port	1¼" BSPF
Head Range	40–59 m
Flow Range	100–199 L/min
IP Rating	IP68
Drinking Water Certified	Yes

Warranty

The DAB ESYDIVER is covered by a 2-year parts and labour warranty from DAB Pumps.

Need Help?

If you are unsure whether the ESYDIVER is the right pump for your application, WTS can assist with pump selection based on your required flow rate, head, pipe size and system requirements.
