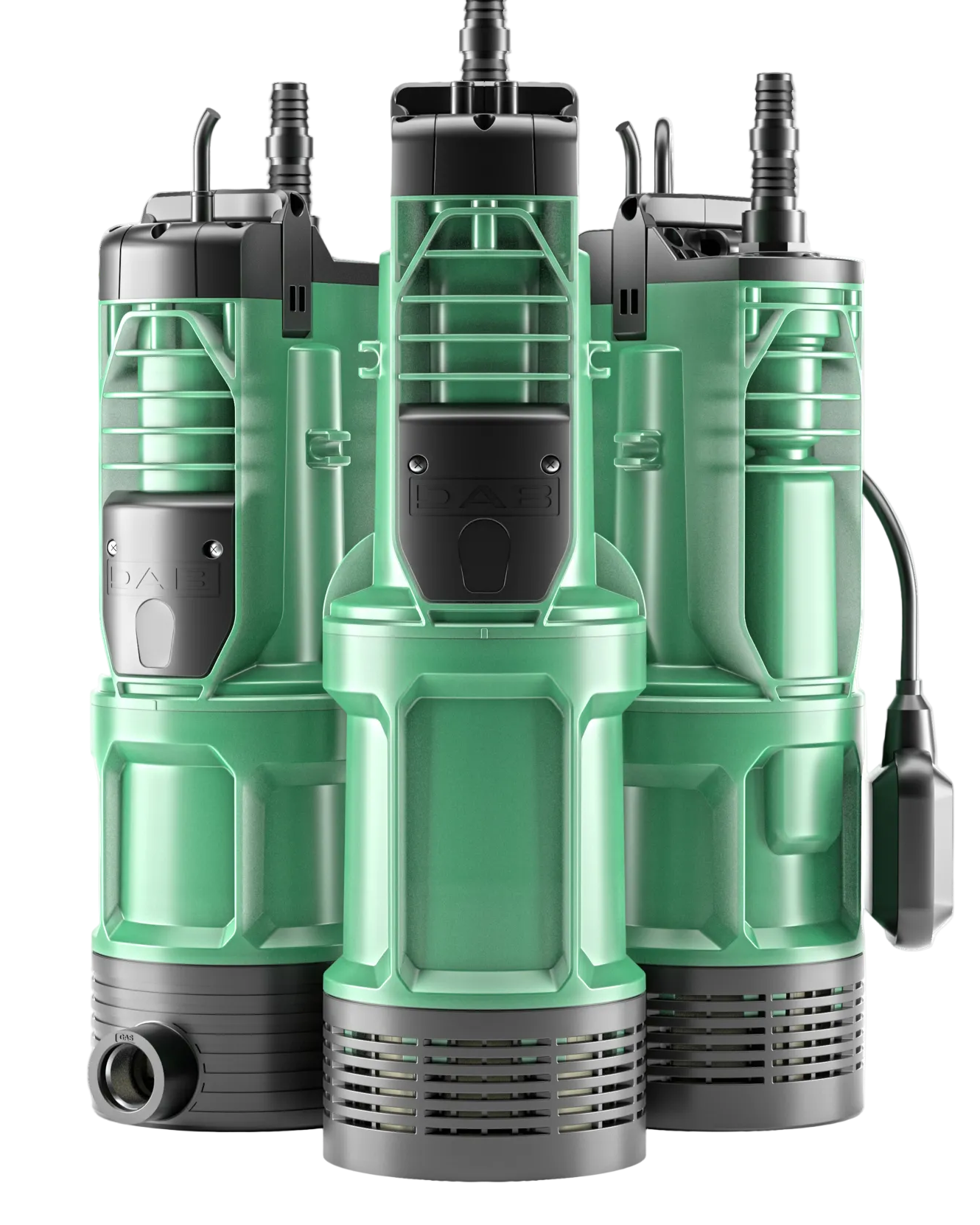

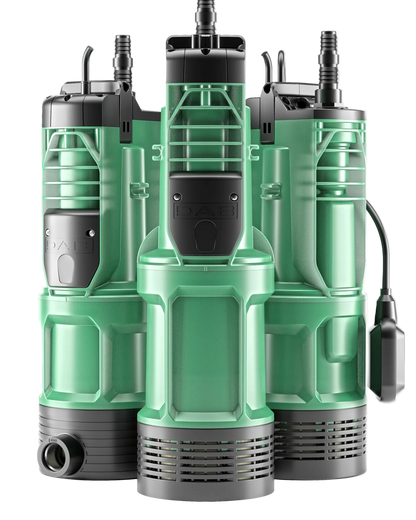

DAB Divertron 900 Submersible Pump
DAB Divertron 900 Submersible Pump
Divertron 900 by DAB is a submersible electronic multi-impeller pump for clean water designed to increase water pressure, rainwater reuse, gardening and irrigation in residential building service.
Divertron is ideal for the use in rainwater recovery systems and to increase water pressure from a cistern or a tank, that can be used for example for garden watering or vegetable garden.

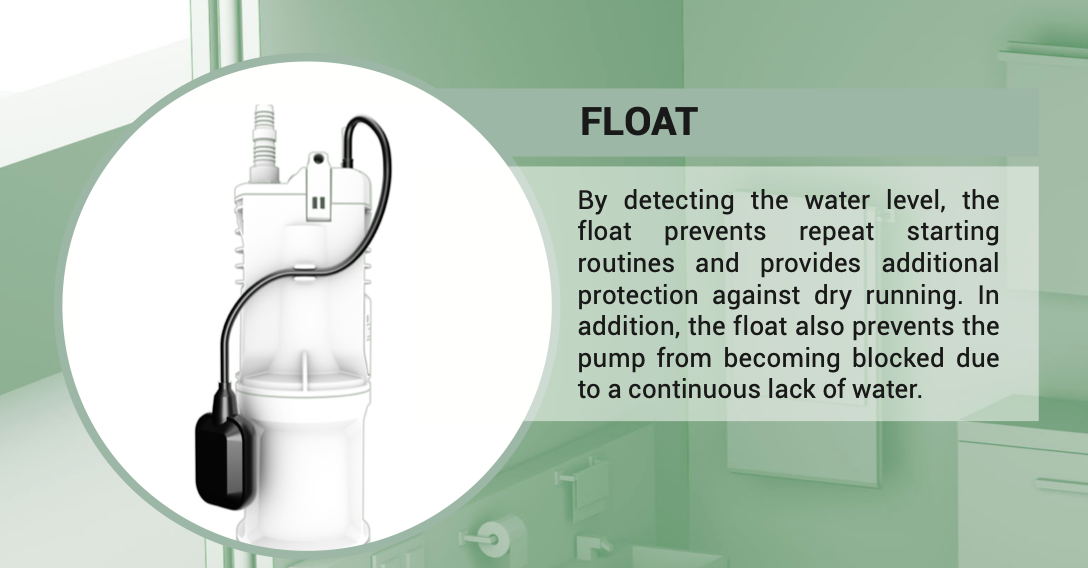

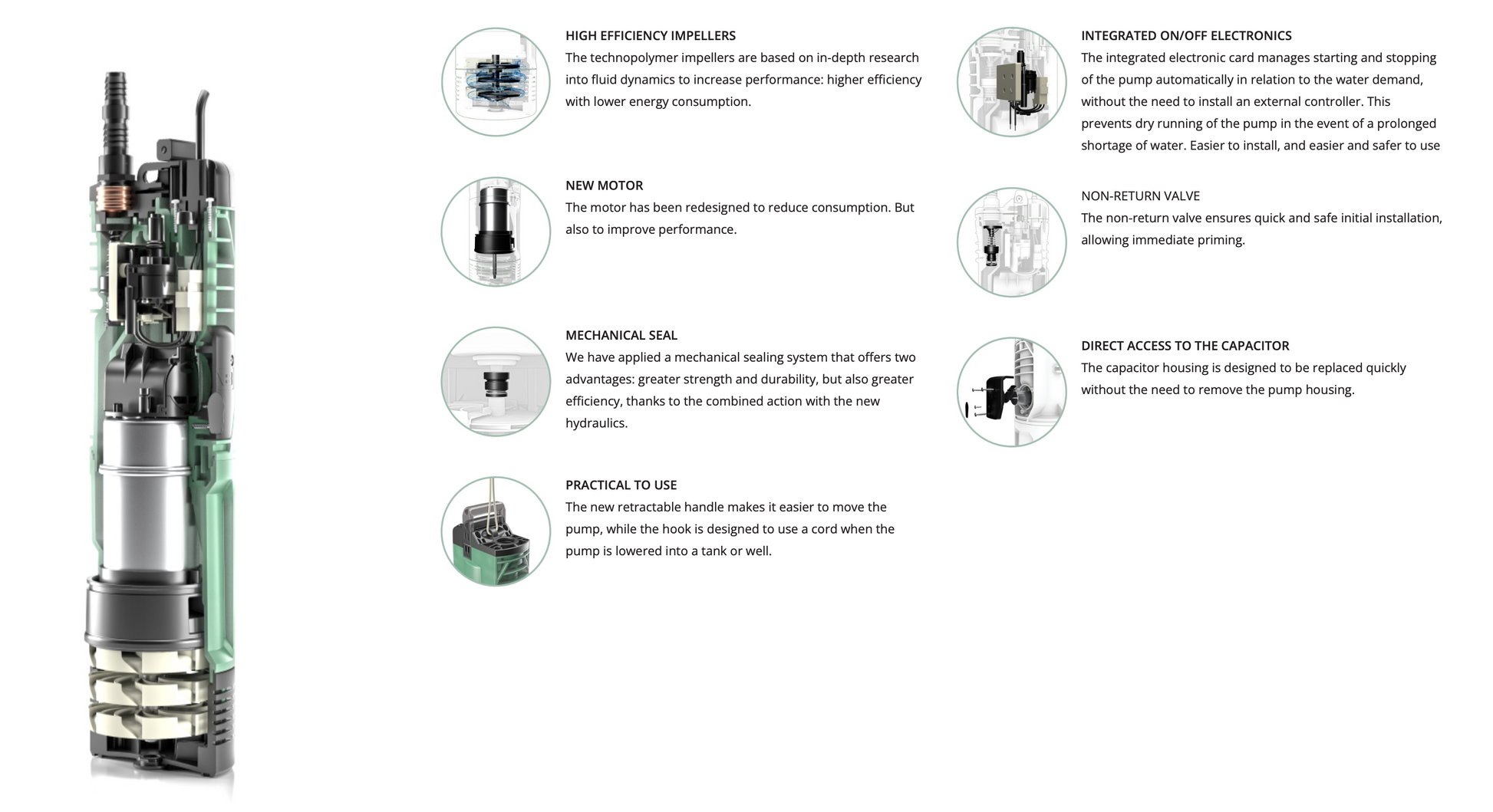

Divertron integrates a pressure switch, a flow sensor and the control electronics for automatic on and off switch. The automatic operation allows the pump to start and stop autonomously according to the requirements of the system and protects it from the run dry. The pump is supplied with integrated start capacitor (it is inside a compartment accessible without disassembling the pump), a non-return valve and a 15-meter power cable with plug.

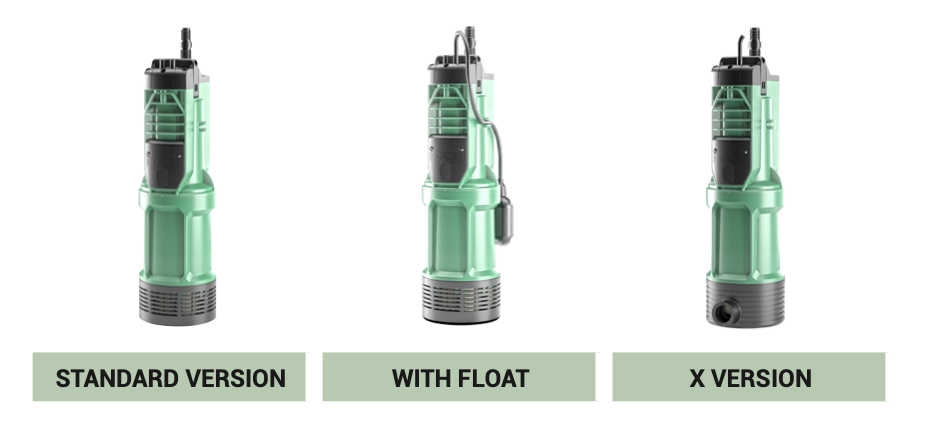

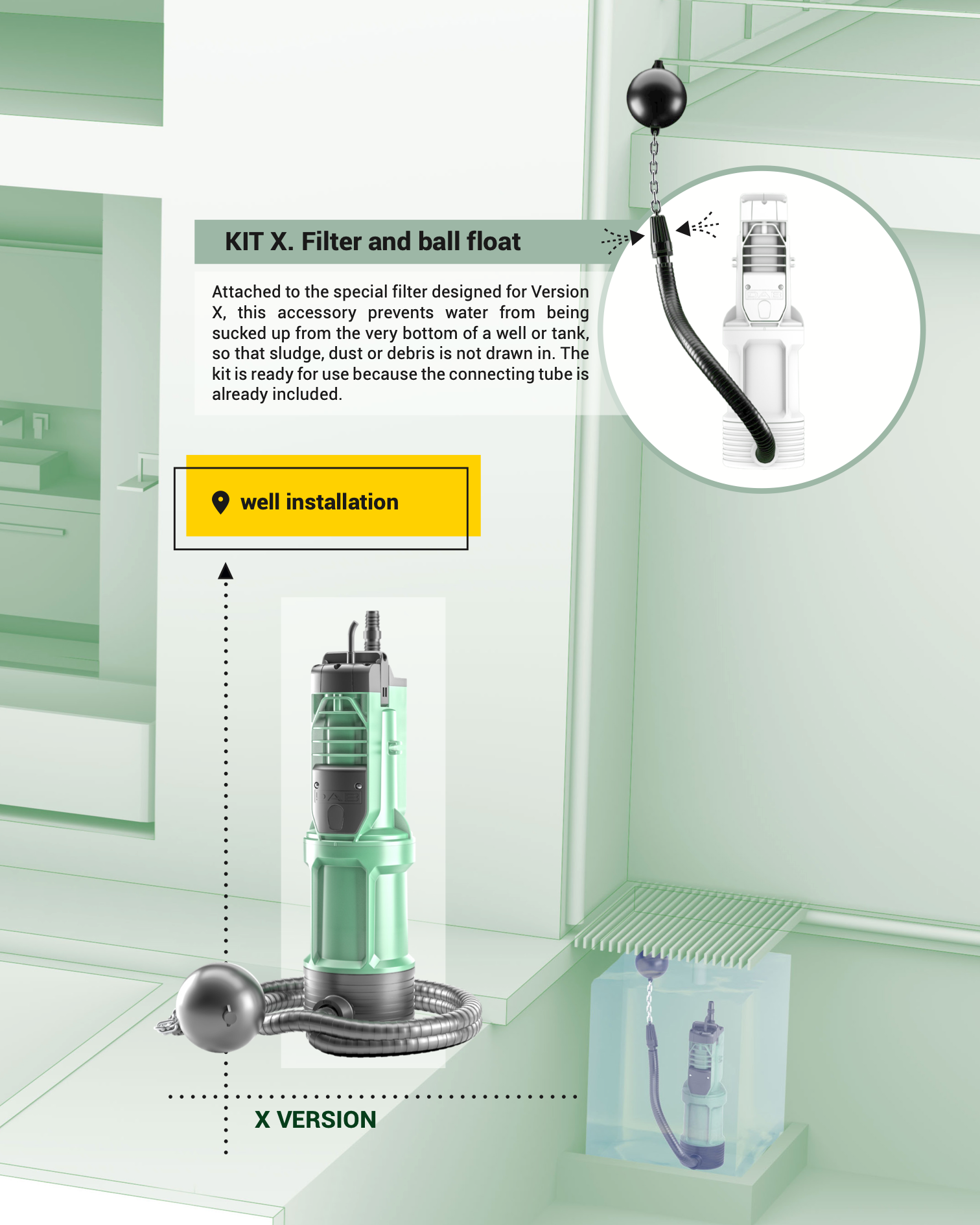

The pump is available with technopolymer anti-debris filter with connection for float suction kit (X version).

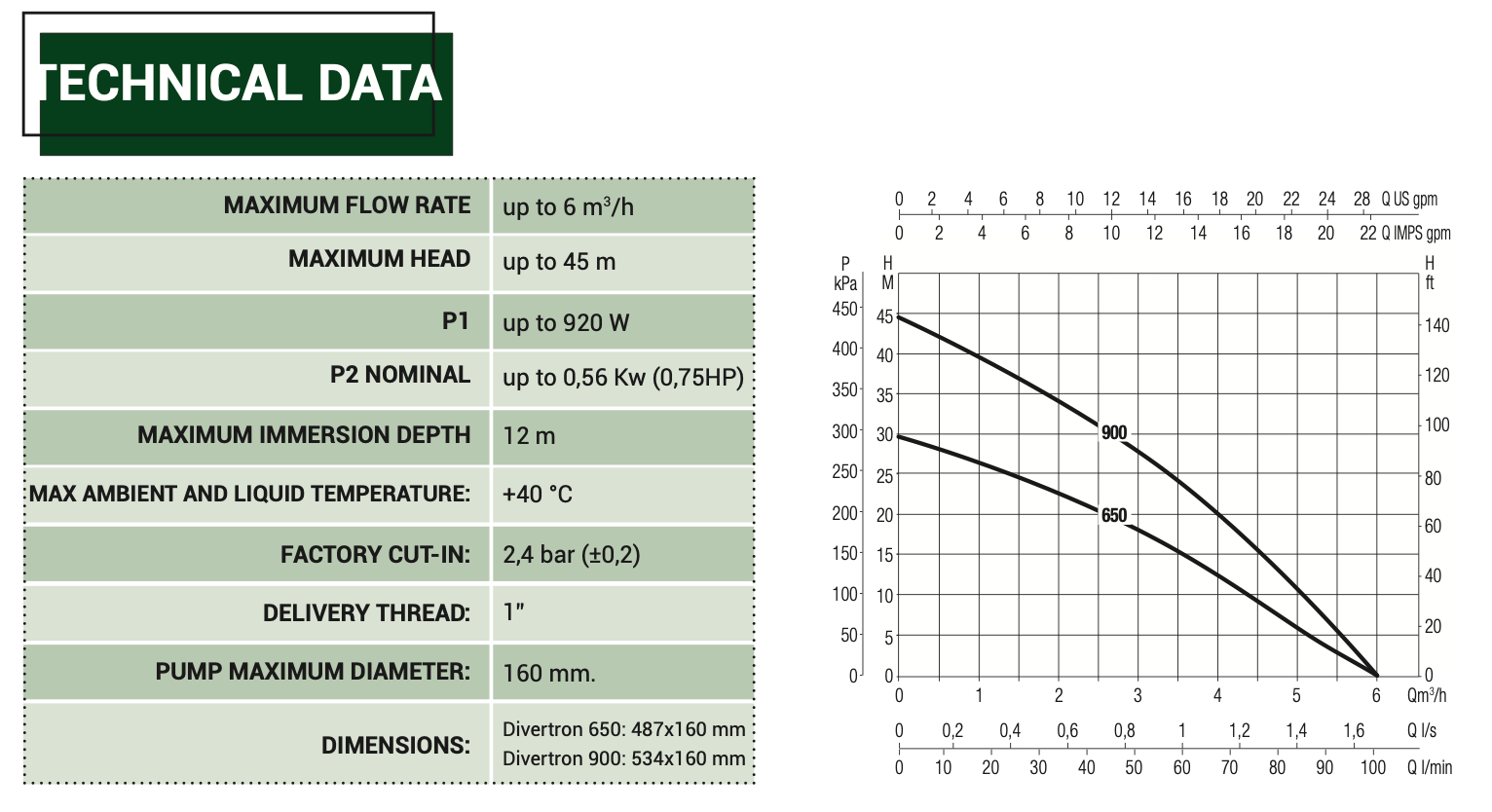

Technical Specifications
| Flow Rate | 1 m³/h to 5.4 m³/h |
| Maximum Head | 45 m (900 version) |
| Maximum Immersion Depth | 15 m |
| Pumped Liquid Type | Clean water, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, and chemically neutral |
| Liquid Temperature Range | 0°C to +35°C |
| Connection Size | 1" thread (supplied standard with four-section fitting reducer) |
| Maximum Pump Diameter | 160 mm |
| Impeller Material | Technopolymer |
| Maximum Starts per Hour | 20 |
| Protection Class | IP68 |
| Motor Insulation Class | F |
| Single Phase Power Supply | 230 V / 50 Hz |
| Power Cable & Plug | 15 m H07RNF cable with power plug |
| Installation Type | Fixed or movable, vertical position |
