25,000 L Concrete Water Tank

The 25,000 L Duracrete Concrete Water Tank is a robust, long-lasting water storage solution manufactured in New Zealand using locally sourced raw materials.

Concrete construction provides a cool, stable environment for stored water and makes Duracrete tanks particularly suited to household water supply, rural properties, rainwater harvesting, irrigation and fire-fighting water storage.

With above-ground, semi-buried and fully buried installation options, the 25,000 L Duracrete tank can be configured to suit a wide range of sites, including properties where space is limited or where the tank needs to be integrated into the landscape.

Built for demanding conditions

Duracrete concrete tanks offer several advantages for rural and residential water storage:

• 25,000 litre water storage capacity

• Manufactured in New Zealand from locally sourced raw materials

• Concrete construction provides a cool, stable environment for stored water

• Suitable for household and rural water storage

• Resistant to fire and wind

• No additional anchoring restraints or ballast water required

• Suitable for properties with livestock, without requiring additional external stock protection

• Can be installed above ground, partially buried or fully buried

• Fully buried flat-roof tanks can be installed beneath driveways, decks or garden areas, making efficient use of available space

• Buried and partially buried configurations can be used in confined or restricted sites

• Can be installed in close proximity to foundations or boundaries, subject to site-specific engineering and installation requirements

Tank configurations

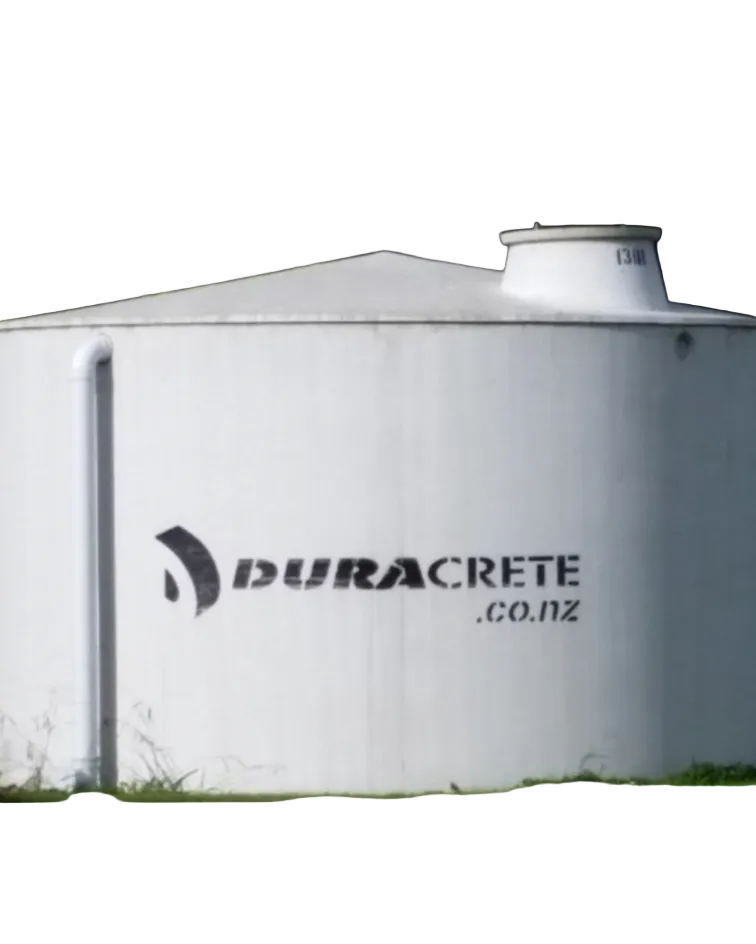

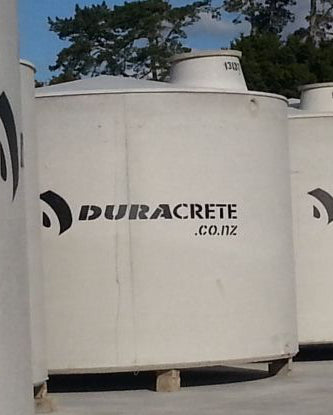

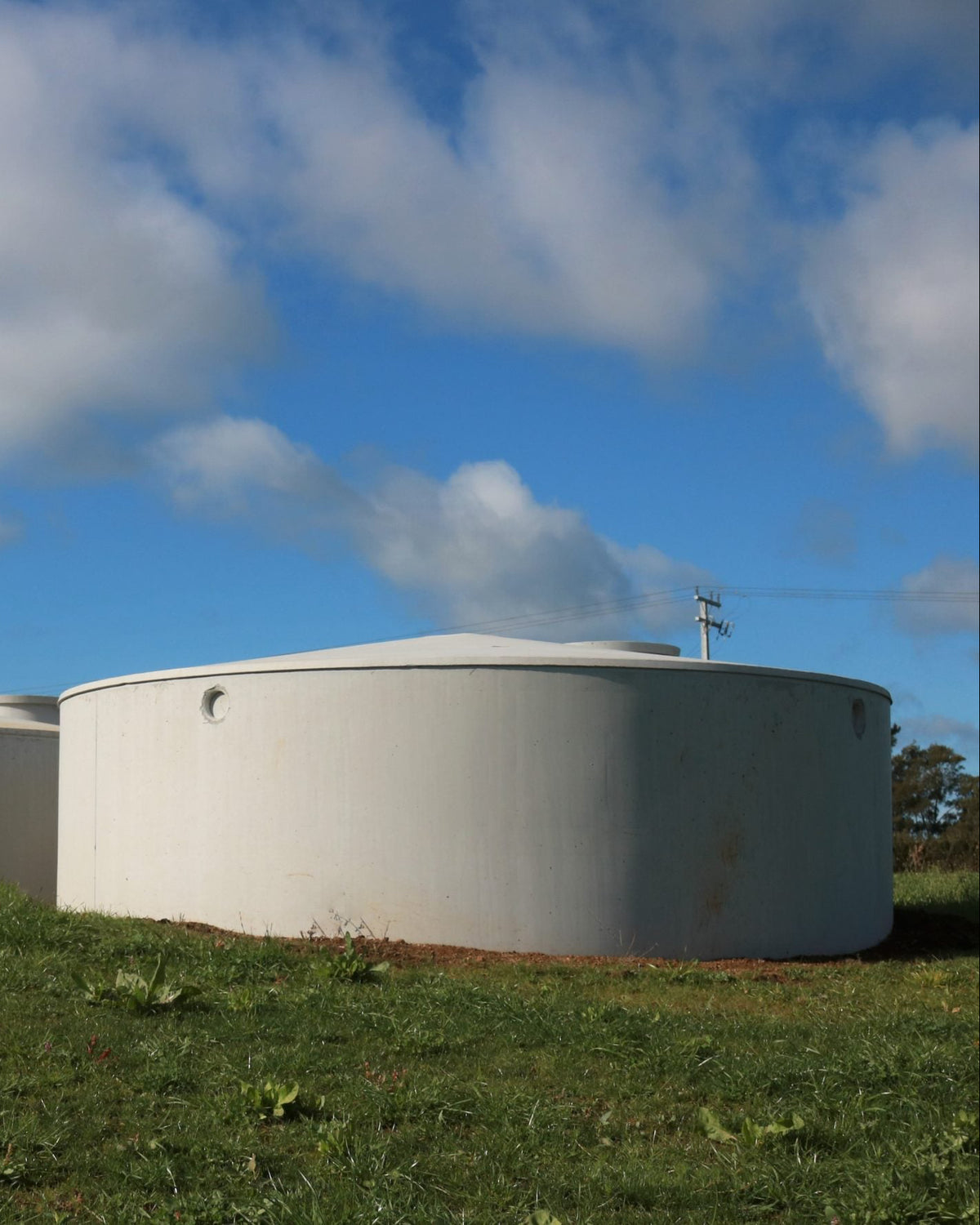

Circular Standard / Cone Top Water Tank

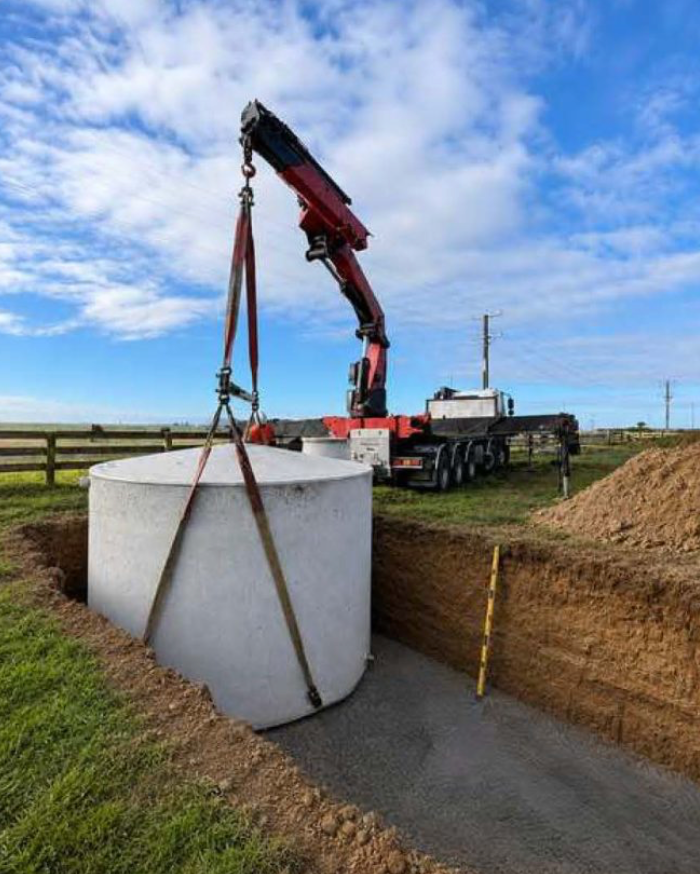

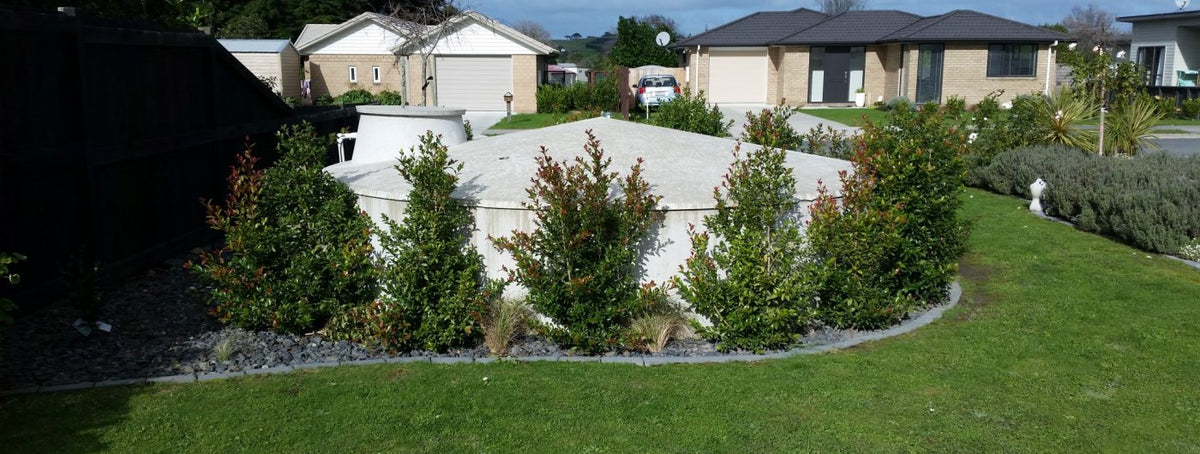

Above Ground or Semi-Buried

The standard cone-top configuration is suitable for above-ground and semi-buried installations.

Includes:

• Roof

• 600 mm internal diameter manhole riser

• Bolt-down manhole lid

• 4 × 100 mm knock-outs

• 2 × 40 mm knock-outs at the top of the side wall

• 3 × 50 mm BSP fittings at the bottom of the side wall

• 1 × drain connection

• 2 × LH/RH balance pipe fittings

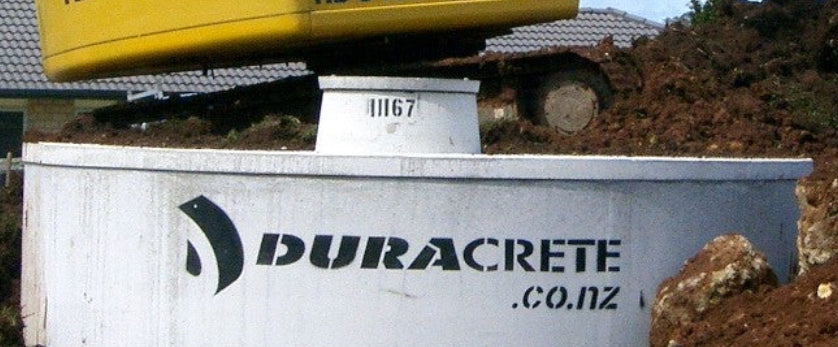

Circular Flat Roof Water Tank with Central Support Column

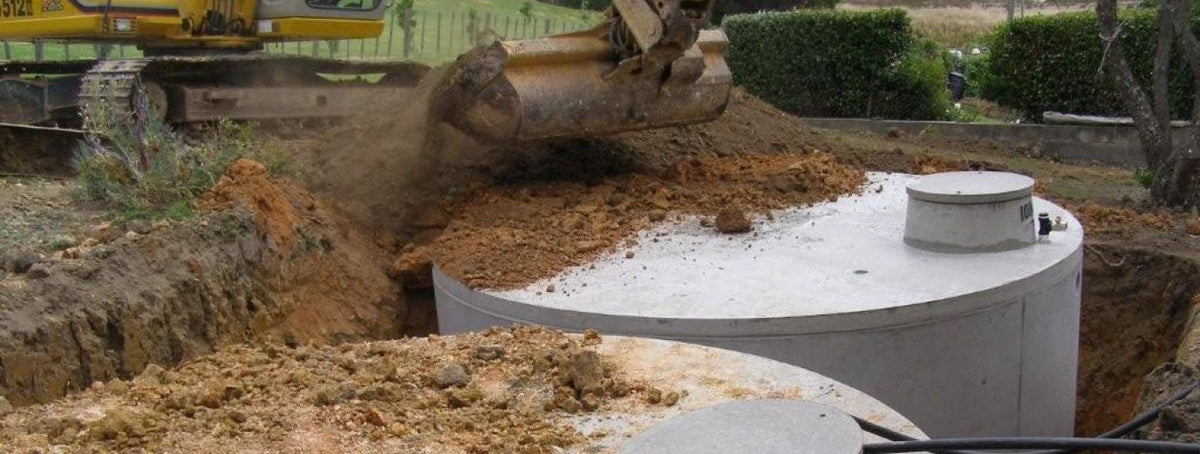

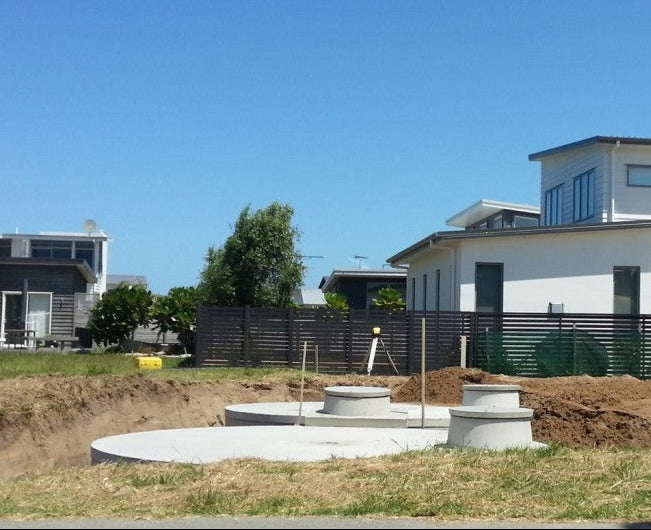

Fully Buried Applications

The flat-roof configuration is designed for fully buried installations where maximising available space is important.

The tank can be incorporated beneath areas such as driveways, gardens or decks, subject to the requirements of the site and installation design.

Includes:

• Flat roof with central support column

• 600 mm internal diameter manhole riser

• Bolt-down manhole lid

• 4 × 100 mm knock-outs

• 2 × 40 mm knock-outs at the top of the side wall

• 3 × 50 mm BSP fittings at the bottom of the side wall

• 1 × drain connection

• 2 × LH/RH balance pipe fittings

Installation and site suitability

Concrete tanks are heavy-duty water storage structures, and the correct tank configuration and installation method will depend on the site, ground conditions, access, burial depth and intended use.

WTS can help you determine the appropriate tank configuration and water storage solution for your property.

Delivery

Please note: The displayed price does not include delivery.

Delivery is quoted separately based on the distance from the manufacturing/delivery point to your site and is calculated on a per-kilometre basis.

Please contact WTS for a delivery quotation before purchasing.
