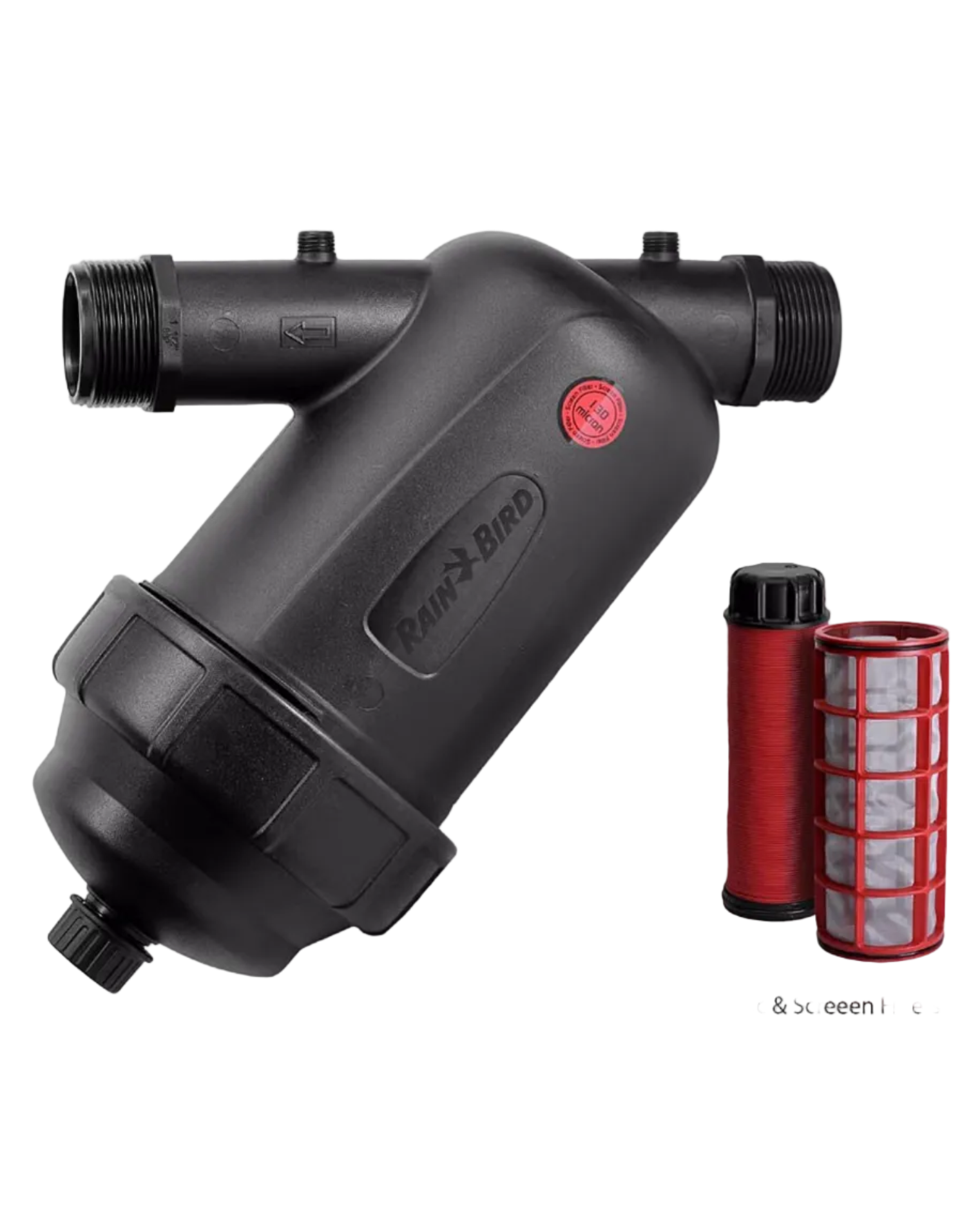

40mm Large Capacity Stainless Screen Filter - 120 Mesh
Provides extra large filtration capacity for residential, commercial, and municipal applications
Durable filters can be easily removed for cleaning, significantly reducing cleaning time
Disc filters can decompress for easy cleaning
Auxiliary connection with a threaded cap can be drilled to allow draining or depressurization
LARGE-CAPACITY AND LOW MAINTENANCE WITH A SOLID BUILD
• Durable Screen Filters can be easily removed for cleaning, significantly reducing cleaning time.
• Disc Filters decompress for easy cleaning.
• Larger filer area - allows longer times between cleaning.
• Flow design draws particles away from filter cartridges, further extending time between cleanings.
• Auxiliary connection has a small threaded cap that allows for draining or depressurization.
Operating Range:
- 25mm - (1”) Model: Maximum flow: Up to 6 m3/hr -Filtering surface (disc): 180cm2.
- 40mm - (1.5”) Models: Maximum flow: Up to 14 m3/hr -Filtering surface (disc): 310 cm2.
- 50mm - (2”) Models: Maximum flow: Up to 25 m3/hr -Filtering surface (disc): 525 cm2 Maximum Pressure: 8 bar Maximum Temperature: Up to 60°C.
• 120 Mesh = 130 Micron.
• 3 year warranty.
